Description

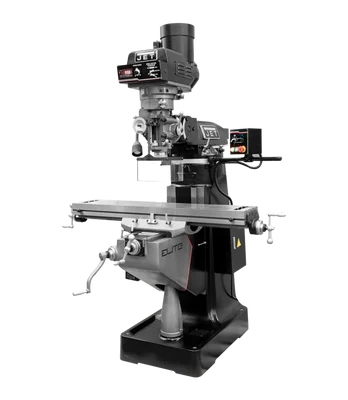

Jet EVS-949 Mill 3-Axis Newall DP700 (Knee) DRO XY Powerfeeds (894368) is the epitome of precision and performance in milling technology. Engineered by Elite, this machine is designed to meet the most stringent tolerance requirements while offering exceptional reliability and operator safety.
KEY FEATURES AND BENEFITS:
- State-of-the-art spindle assembly with industry-leading spindle taper runout of 0.00012″
- Chromium molybdenum spindle fully hardened and precisely ground
- Seamless, one-piece steel quill induction hardened and chromed for exceptional accuracy and longevity
- Hand-scraped Y and Z-axis ways for smooth movement, greater oil retention, and long service life
- Heat-treated and polished lead screws with thrust bearings for precise table movement under heavy loads
- Double nut design eliminates backlash for accurate lateral control
- Patented vari-disc key offers ten times the wear resistance of traditional materials
SPECIFICATIONS:
- Automatic lubrication every 30 minutes
- Hardened and ground table for stable machining of various materials
- Ball bearing-supported motor shaft for quiet and precise operation
- Stainless steel Y-axis way cover for added protection
- Certified Meehanite® castings for exceptional rigidity and dimensional stability
- Electronic spindle brake, mounted control box with emergency stop button, CSA Group certified
HOW TO USE:
- Ensure the mill is securely set up and calibrated.
- Utilize the Newall DP700 digital readout for precise measurements.
- Engage X and Y-axis power feeds for controlled feed rates.
- Maintain automatic lubrication to ensure optimal machine performance.
- Adhere to safety protocols, including using the electronic spindle brake and emergency stop button.
BENEFITS OF USING Jet EVS-949 Mill 3-Axis Newall DP700 (Knee) DRO XY Powerfeeds (894368):
- Exceptional precision and performance for demanding milling tasks
- Durable construction and reliable operation
- Enhanced safety features for operator protection
- Efficient workflow with digital readout and power feeds
FEATURES:
- Newall DP700 digital readout for accurate measurements
- X and Y-axis power feeds for controlled feed rates
- 9″ x 49″ table size, R-8 spindle taper, 3 HP, 230V, 3-Phase motor
- 3-axis (knee) design for versatile machining capabilities
