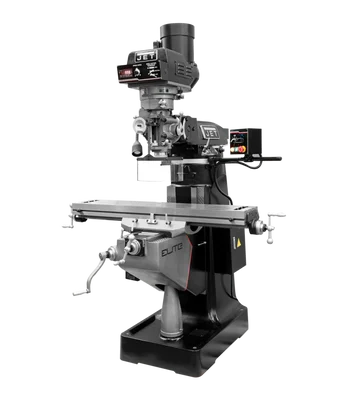

Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO XY Powerfeed (894348)

Description

Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO XY Powerfeed (894348) is a high-performance vertical knee mill designed for precision machining applications. This feature-packed mill boasts a 3-axis ACU-RITE 303 digital readout (DRO) system for accurate positioning, X and Y-axis JET powerfeeds for automated table and saddle movement, and a USA-made powered drawbar for secure toolholding.

KEY FEATURES AND BENEFITS:

• Precision Machining: Hand-scraped ways, rigid Meehanite castings, and high-quality bearings ensure exceptional accuracy and minimal runout.
• Automatic Lubrication: Automatic lubrication system extends machine life and reduces maintenance.
• Increased Efficiency: Powerfeeds on the X and Y-axis automate table movement, boosting productivity.
• Durable Construction: Built with robust materials for long-lasting performance in demanding environments.
• User-Friendly Controls: The mounted control box houses all major mill functions and an emergency stop button for operator safety.

SPECIFICATIONS:

• Table Size (L x W) (in.): 9 x 49
• Spindle Taper: R-8
• Quill Diameter (in.): 3-3/8
• Spindle Speeds (RPM): Electronic Variable, 60-5,000
• Quill Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Spindle Travel (in.): 5
• Motor (HP): 3 HP, 230V, 3-Phase
• Table Longitudinal Travel (in.): 36
• Table Cross Travel (in.): 12
• Work Table Weight Capacity (lbs.): 550
• Overall Dimensions (L x W x H) (in.): 68 x 63 x 84
• Weight (lbs.): 2,300

HOW TO USE:

To ensure optimal operation of the Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO XY Powerfeed (894348), follow these steps:

1. Installation: Refer to the user manual for detailed installation instructions. Ensure the mill is properly leveled and secured on a stable base.
2. Power Connection: Connect the mill to the appropriate electrical power source (230V, 3-Phase) following all safety guidelines.
3. Tooling Setup: Mount your desired cutting tool in the R8 spindle taper using the drawbar and tighten securely.
4. Positioning & Machining: Utilize the DRO system and manual controls to precisely position the workpiece and quill for machining operations.
5. Powerfeeds: Engage the X and/or Y-axis powerfeeds for automated table movement during milling processes.
6. Safety: Always wear appropriate safety gear such as safety glasses, gloves, and hearing protection while operating the mill.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO XY Powerfeed (894348):

• Achieve professional-grade machining results with exceptional precision and accuracy.
• Increase productivity and efficiency with automated table movement via powerfeeds.
• Reduce operator fatigue and improve ergonomics with user-friendly controls.
• Experience long-lasting performance and minimal downtime thanks to the durable construction and automatic lubrication system.
• Tackle a wide range of machining projects with the machine’s versatility and powerful capabilities.

FEATURES:

• 3-Axis ACU-RITE 303 Digital Readout (DRO) System
• X and Y-Axis JET Powerfeeds
• USA-Made Powered Drawbar
• Variable Speed Spindle (60-5,000 RPM)
• Automatic Lubrication System
• Hardened and Ground Table
• Hand-Scraped Ways
• Meehanite Castings
• R8 Spindle Taper
• Spindle Safety Guard
• Halogen Machine Lamp
• Dual Locks on All Surfaces
• Meets CSA / CUS safety certifications
