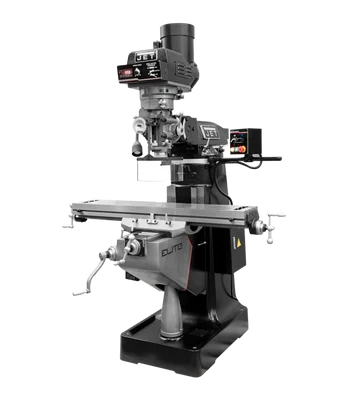

Jet EVS-949 Mill 3-Ax Newall DP700 (Knee) DRO Servo XYZ Pwrfd (894433)

Description

Jet EVS-949 Mill 3-Ax Newall DP700 (Knee) DRO Servo XYZ Pwrfd (894433) is a professional-grade milling machine designed for precision and longevity. It boasts a 3-axis Newall DP700 digital readout (DRO) system, servo-driven power feeds on all axes, and meticulously hand-scraped ways for exceptional accuracy and smooth operation. Built to handle demanding tasks, this mill is ideal for a variety of machining operations in professional workshops and industrial settings.

KEY FEATURES AND BENEFITS:

• High Precision: The Newall DP700 DRO system ensures precise measurements for accurate machining, while the servo power feeds on the X, Y, and Z axes deliver smooth and consistent movements.
• Hand-Scraped Ways: The hand-scraped ways provide exceptional accuracy, reduce friction, and improve the overall longevity of the machine.
• Robust Construction: Built with a rigid Meehanite® cast iron base and column, the mill maintains stability even under heavy loads, ensuring consistent performance and minimizing vibrations.
• Automatic Lubrication: The automatic lubrication system keeps critical components properly lubricated, reducing wear and tear, and extending the mill’s lifespan.
• Safety Features: The mill comes equipped with a spindle safety guard, emergency stop button, and is CSA/CUS certified to meet stringent safety standards.

SPECIFICATIONS:

• Digital Readout: 3-Axis Newall DP700 Knee
• Powerfeed: Servo X-Axis, Y-Axis, and Z-Axis
• Table Size (L x W): 9 x 49 inches
• Spindle Taper: R-8
• Spindle Speed Range: 60 – 5,000 RPM
• Motor: 3 HP, 230V, 3 Phase
• Overall Dimensions (L x W x H): 68 x 63 x 84 inches
• Weight: 2,300 lbs

HOW TO USE:

1. Preparation: Securely mount your workpiece on the mill table using appropriate clamps or fixtures. Ensure the work area is clean and free of debris.
2. Tool Selection: Choose the correct cutting tool for your specific machining operation (milling, drilling, boring).
3. Zeroing: Set the DRO to zero for each axis, ensuring accurate positioning of the workpiece and tool.
4. Speed and Feed Selection: Set the appropriate spindle speed and feed rate based on the material and tool being used.
5. Cutting: Engage the power feed for the desired axis and monitor the cutting process carefully.
6. Finishing: Make any necessary adjustments to the tool position or cutting parameters to achieve the desired finish.

BENEFITS OF USING Jet EVS-949 Mill 3-Ax Newall DP700 (Knee) DRO Servo XYZ Pwrfd (894433):

• Enhanced Precision: Achieve tight tolerances and superior surface finishes with the mill’s precise DRO and servo-driven power feeds.
• Increased Productivity: The rigid construction and powerful motor enable faster cutting speeds and efficient material removal.
• Reduced Maintenance: The automatic lubrication system minimizes wear and tear, reducing maintenance requirements.
• Improved Safety: The spindle safety guard and emergency stop button prioritize operator safety.

FEATURES:

• Chromium Molybdenum spindle, fully hardened and precisely ground
• Seamless, one-piece, induction hardened and chromed steel quill
• Patented vari-disc key for increased wear resistance
• Ground and multiplane dynamically balanced variable speed pulleys
• Stainless steel Y-Axis way cover for extra protection
• Electronic spindle brake for added safety
