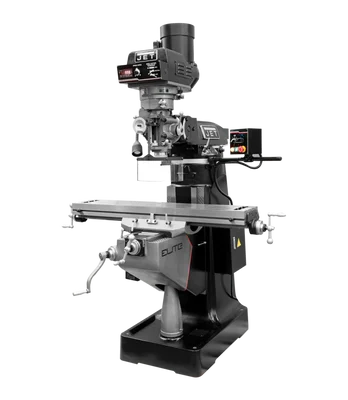

Jet EVS-949 Mill 3-Ax ACURITE 303 (Quill) DRO Servo XYZ Pwrfd (894410)

Description

Jet EVS-949 Mill 3-Ax ACURITE 303 (Quill) DRO Servo XYZ Pwrfd (894410) is a high-performance milling machine engineered for precision, durability, and versatility. Ideal for demanding machining tasks in professional and industrial settings, it features a rigid Meehanite casting, hand-scraped ways, and a precision-ground spindle for exceptional accuracy and stability.

KEY FEATURES AND BENEFITS:

• High Precision: The mill’s hand-scraped ways, precision-ground spindle with low runout, and rigid Meehanite casting ensure smooth, accurate movement and exceptional machining results.
• ACU-RITE 303 DRO: The 3-axis DRO system provides real-time position feedback for enhanced accuracy and control during milling operations.
• Servo Motors: Servo motors on all three axes enable precise positioning and smooth power feeds, improving efficiency and productivity.
• Enhanced Durability: The mill’s patented vari-disc key, hardened and ground table, and stainless steel way cover contribute to its long-lasting performance and reduced maintenance requirements.

SPECIFICATIONS:

• Table Size: 9″ x 49″
• Spindle Taper: R-8
• Quill Diameter: 3-3/8″
• Spindle Speeds: 60 – 5,000 RPM (Electronic Variable)
• Quill Down Feed Rates: 0.0015 – 0.003 – 0.006 IPR
• Travel (X/Y/Z): 36″/12″/16″
• Motor: 3 HP, 230V, 3 Ph
• Overall Dimensions: 68″ x 63″ x 84″
• Weight: 2,300 lbs

HOW TO USE:

1. Setup: Securely mount your workpiece on the mill table using appropriate clamps or fixtures.
2. Tooling: Install the desired milling cutter in the spindle and tighten it securely.
3. DRO Setup: Reference the DRO axes to establish the starting point for your machining operations.
4. Program (Optional): If desired, program your machining operations using the DRO for automated movement and control.
5. Manual Operation: For manual operation, use the handwheels and controls to move the table and quill, and adjust the spindle speed as needed.
6. Monitor: Continuously monitor the DRO for position feedback and adjust your machining parameters as necessary.
7. Lubrication: Ensure the mill is properly lubricated according to the manufacturer’s instructions.

BENEFITS OF USING THE Jet EVS-949 Mill 3-Ax ACURITE 303 (Quill) DRO Servo XYZ Pwrfd (894410):

• Increased Precision: Achieve tighter tolerances and superior surface finishes with the mill’s precise movement and control.
• Improved Efficiency: Reduce setup times and increase productivity with the DRO and servo motors.
• Enhanced Durability: Benefit from the mill’s robust construction and high-quality components for reliable, long-lasting performance.
• Increased Safety: Work with confidence thanks to the mill’s safety features, including the spindle safety guard and electronic spindle brake.

FEATURES:

• Hand-scraped ways
• Precision-ground spindle
• Meehanite casting
• ACU-RITE 303 DRO
• Servo motors on X, Y, and Z axes
• Automatic lubrication
• Variable speed spindle
• Patented vari-disc key
• Hardened and ground table
• Stainless steel Y-axis way cover
• CSA/CUS certified
• Spindle safety guard
• Electronic spindle brake
