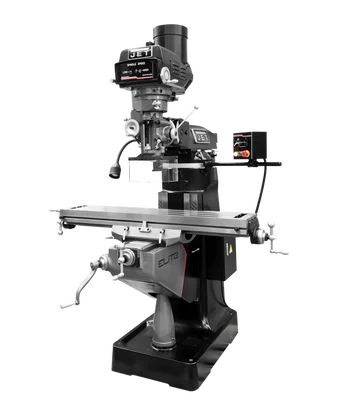

Jet ETM-949 Mill X-Axis JET Powerfeed Air Draw Bar (894104)

Description

The Jet ETM-949 Mill X-Axis JET Powerfeed Air Draw Bar (894104) is a high-performance machine built for precision and reliability in various metalworking applications.

KEY FEATURES AND BENEFITS:

• Designed for Accuracy: This JET mill boasts a meticulously crafted spindle assembly with class 7210 (P4, ABEC-7) precision angular bearings, achieving industry-leading spindle taper runout of just 0.00012 inches. Additionally, the ways are hand-scraped to 16 points per inch for exceptional oil retention and smooth movement, minimizing errors during operation.
• Built to Last: The JET ETM-949 prioritizes long-lasting performance. The chromium molybdenum spindle is fully hardened for maximum durability, while the seamless, one-piece steel quill is induction hardened and chromed for increased strength and precision. Meehanite castings resist deformation and maintain strict tolerances over time.
• Effortless Operation: The X-axis powerfeed automates table movement, streamlining workflows. The variable speed control allows for fine-tuned adjustments based on the material and application. The USA-made air draw bar ensures secure holding of cutting tools for efficient and safe tool changes.

SPECIFICATIONS:

• Machine Name: Jet ETM-949 Mill X-Axis JET Powerfeed Air Draw Bar (894104)
• Table Size: 9″ x 49″
• Automatic Lubrication System: Yes, for reduced maintenance
• Safety Certifications: Meets CSA / CUS
• Spindle Safety: Spindle safety guard and electronic spindle brake
• Table Features: Hardened and ground table, heat-treated and polished lead screws, double nut design
• Y-axis Way Cover: Stainless steel for extended protection

HOW TO USE:

1. Ensure all safety features are in place before operating.
2. Utilize the X-axis powerfeed for automated table movement.
3. Adjust the variable speed control for optimal machining conditions.
4. Maintain regular intervals for the automatic lubrication system.

Jet ETM-949 Mill X-Axis JET Powerfeed Air Draw Bar (894104):

• Precision and reliability in various metalworking applications
• Long-lasting durability and performance
• Efficient workflow enhancements with automated features
• Secure and efficient tool changes with the USA-made air draw bar
• Compliance with safety standards for operator protection
