Description

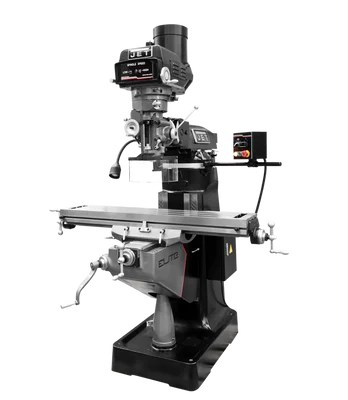

The Jet ETM-949 Mill with 2-Axis ACU-RITE 203 DRO (894109) is a high-performance variable speed milling machine designed for machinists who demand precision and durability.
KEY FEATURES AND BENEFITS:
- Built with operator safety in mind, featuring a spindle safety guard, automatic lubrication system, and an emergency stop button.
- Cast iron base and column provide a rigid platform for demanding jobs.
SPECIFICATIONS:
- Motor: 3 HP, 230/460V, 3 Phase
- Spindle Taper: R-8
- Spindle Speeds: Variable (60 – 4,500 RPM)
- Quill Travel: 5″
- Table Size: 9″ x 49″
- Table Longitudinal Travel: 36″
- Table Cross Travel: 12″
- Weight: 2420 lbs.
HOW TO USE:
1. Ensure all safety guards are in place before operation.
2. Power on the machine and adjust the variable speed control as needed.
3. Use the ACU-RITE 203 DRO for precise positioning of workpieces.
4. Clamp workpieces securely using the T-slots on the table.
5. Monitor operations using the halogen machine lamp for visibility.
BENEFITS OF USING Jet ETM-949 Mill with 2-Axis ACU-RITE 203 DRO (894109):
- Perfect for machining steel, aluminum, and various materials.
- Ideal for creating molds, dies, and performing precision milling operations.
FEATURES:
- Precision machining with class 7210 (P4, ABEC-7) precision angular bearings.
- Smooth operation ensured by hand-scraped ways and heat-treated lead screws.
- Double nut design eliminates backlash for precise control.
- Chromium Molybdenum spindle for durability.
- Seamless steel quill induction hardened for strength.
- Variable speed pulleys for smooth transitions.
- ACU-RITE 203 DRO for accurate positioning.
- Spacious table with T-slots for workpiece clamping.
- Halogen machine lamp for improved visibility.
