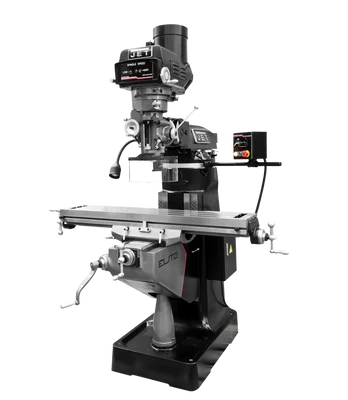

Jet ETM-949 Mill 3-Axis Newall DP700 (Knee) DRO (894165)

Description

The Jet ETM-949 Mill 3-Axis Newall DP700 (Knee) DRO (894165) is a high-performance knee mill designed for machinists who demand precision and reliability. This versatile machine boasts an industry-leading spindle runout of just 0.00012″ and hand-scraped ways for smooth operation, ensuring exceptional accuracy for your most critical projects.

KEY FEATURES AND BENEFITS:

• Variable Speed Spindle: Tackle a wide range of materials with a powerful 3 HP motor and variable speed control from 60 to 4,500 RPM.
• R-8 Spindle Taper: Quickly and easily change tooling using the industry-standard R-8 spindle taper.
• Power Feeds on X, Y, and Z Axes: Increase machining efficiency with power feeds on all three axes.
• Air Drawbar: Effortlessly change tools with the convenient air drawbar.
• 3-Axis Newall DP700 DRO: Achieve precise positioning with the integrated digital readout system.

SPECIFICATIONS:

• Spindle Runout: 0.00012″
• Motor: 3 HP
• Spindle Speed: 60 to 4,500 RPM
• Spindle Taper: R-8
• Power Feeds: X, Y, Z Axes
• DRO System: 3-Axis Newall DP700
• Certifications: CSA/CUS Certified

HOW TO USE:

1. Turn on the machine using the power switch.
2. Select the desired spindle speed using the variable speed control.
3. Load your material and secure it on the table.
4. Use the controls to move the spindle and perform your machining operations.

BENEFITS OF USING Jet ETM-949 Mill 3-Axis Newall DP700 (Knee) DRO (894165):

• High precision and reliability for critical projects.
• Efficient machining capabilities with variable speed and power feeds.
• Integrated DRO system for precise positioning.
• Durable construction with Meehanite castings and automatic lubrication.

FEATURES:

• Ball bearing motor shaft support for quiet operation.
• Heat-treated and polished lead screws for smooth table movement.
• Double nut design eliminates table and saddle backlash for precise control.
• Variable speed pulleys minimize vibration during speed changes.
• Hardened and ground table for superior material stability.
• Stainless steel Y-axis way cover for extended protection.
