Description

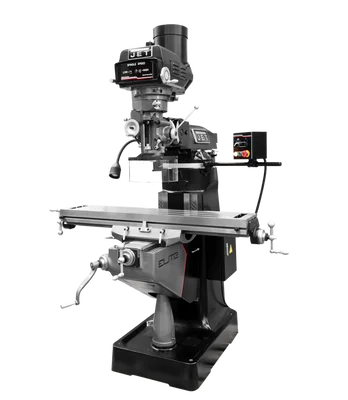

The Jet ETM-949 Mill 3-Axis ACURITE 303 (Quill) DRO Servo X Pwrfd (894206) is a professional-grade milling machine designed to meet the rigorous demands of modern machining. As part of Jet’s Elite series, this mill embodies a commitment to precision, reliability, and durability.
KEY FEATURES AND BENEFITS:
- Precision Engineering: At the heart of this mill is a high-precision spindle assembly, featuring class 7210 (P4, ABEC-7) precision angular bearings, delivering an industry-leading spindle taper runout of 0.00012″. The Chromium Molybdenum spindle is fully hardened and ground to maintain strict tolerances, ensuring consistent accuracy in your work. The seamless, one-piece steel quill is also induction hardened and chromed for added strength and precision.
- Hand-Scraped Ways and Enhanced Control: The Y and Z-axis ways are meticulously hand-scraped to a minimum of 16 points per square inch, resulting in superior oil retention and exceptionally smooth movements. Table and saddle backlash is minimized by an advanced double nut design, eliminating end-play for precise lateral movements.
- Durable Construction and Performance: Built to last, this mill features a patented vari-disc key that offers ten times the wear resistance of aluminum or brass keys. Variable speed pulleys are ground and dynamically balanced, reducing vibration and ensuring smooth speed transitions. A ball bearing-supported motor shaft ensures quiet and accurate operation at any speed.
- Automation and Safety: The ETM-949 comes equipped with a 3-Axis ACU-RITE 303 DRO (Digital Readout), providing precise measurements on three axes for enhanced accuracy. A servo motor controls the X-axis movement, offering smooth and precise operation. The mill also features automatic lubrication every 30 minutes, ensuring consistent performance and longevity. Safety features include a spindle safety guard, electronic spindle brake, and CSA Group certification.
SPECIFICATIONS:
- Table Size: 9″ x 49″
- Spindle Taper: R-8
- Spindle Speed Range: 60-4500 RPM
- Quill Travel: 5″
- Motor: 3 HP, 230/460V, 3-phase
- Overall Dimensions: 68″ L x 63″ W x 84″ H
- Weight: 2420 lbs
HOW TO USE:
Maximize the capabilities of the Jet ETM-949 Mill with these operational tips:
- Engage all safety features, including the spindle safety guard and electronic spindle brake, before starting operations.
- Utilize the 3-Axis ACU-RITE 303 DRO for precise measurements and positioning.
- Take advantage of the Servo X powerfeed for efficient material handling.
- Adjust the spindle speed within the 60-4500 RPM range for optimal performance with various materials.
- Use the automatic lubrication system to ensure proper maintenance and longevity of the machine.
BENEFITS OF USING THE Jet ETM-949 Mill 3-Axis ACURITE 303 (Quill) DRO Servo X Pwrfd (894206):
- Consistent accuracy and exceptional results across various materials
- Durable construction ensures longevity and reliability
- Enhanced safety features for operator protection and peace of mind
- Innovative design features for optimized performance
FEATURES:
- Robust Meehanite castings
- Automatic lubrication system
- Stainless steel way cover
- Electronic spindle brake
- Advanced double nut design to eliminate backlash
