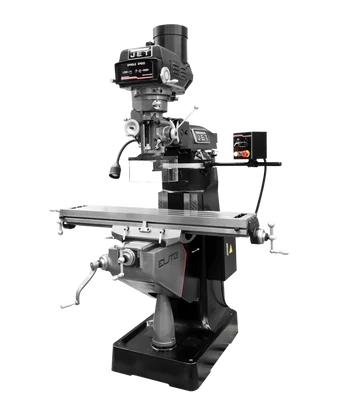

Jet ETM-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO Servo X-Axis (894211)

Description

The Jet ETM-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO Servo X-Axis (894211) is a feature-packed vertical knee mill designed for precision and efficiency. Elevate your metalworking projects with this versatile and powerful milling machine.

KEY FEATURES AND BENEFITS:

• Unmatched Accuracy:
  • ACU-RITE 303 DRO: Achieve precise positioning on the X, Y, and Z axes thanks to the digital readout system.
  • Hand-scraped Ways: Experience exceptional smoothness and minimal friction for reliable machining results.
• Powerful Performance:
  • Servo X-Axis Powerfeed: Automate table movements along the X-axis for increased productivity and reduced operator fatigue.
  • Variable Speed Spindle: Tackle diverse materials with a wide range of spindle speeds from 60 to 4,500 RPM.
  • 3 HP Motor: Delivering ample power for demanding milling applications.
• Built to Last:
  • Certified Meehanite® Castings: Maintain rigidity and dimensional stability throughout years of use.
  • Automatic Lubrication System: Ensures smooth operation and extends machine life.
  • Durable Construction: Featuring a hardened and ground table, heat-treated lead screws, and a one-piece steel quill for long-lasting performance.
• Safety First:
  • Electronic Spindle Brake: Prevents accidental startups for operator safety.
  • Stainless Steel Y-Axis Way Cover: Provides superior protection compared to standard sheet metal covers.
  • CSA Certified: Meets strict safety guidelines for added peace of mind.

SPECIFICATIONS:

• 3-Axis ACU-RITE 303 DRO
• Servo X-Axis Powerfeed
• Variable Speed Spindle (60-4,500 RPM)
• Table Size: 9″ x 49″
• R8 Spindle Taper
• 3 HP Motor
• Travel:
• Knee: 16″
• Ram: 14″
• Table (Longitudinal): 36″
• Table (Cross): 12″
• Weight: 2420 lbs

HOW TO USE:

1. Set up the machine on a stable and level surface.
2. Connect the machine to a suitable power supply (pre-wired for 230V operation).
3. Adjust the spindle speed using the variable speed control to match the material and application.
4. Use the servo X-axis powerfeed for automated and consistent table movement.
5. Refer to the ACU-RITE 303 DRO for real-time position data during operations.
6. Engage the electronic spindle brake and use the emergency stop button for safety when needed.
7. Ensure regular maintenance and check the automatic lubrication system for optimal performance.

BENEFITS OF USING Jet ETM-949 Mill 3-Axis ACU-RITE 303 (Knee) DRO Servo X-Axis (894211):

• High-performance milling machine designed for precision and efficiency.
• Unmatched accuracy with ACU-RITE 303 DRO system and hand-scraped ways.
• Enhanced productivity with servo X-axis powerfeed and variable speed spindle.
• Durable construction with certified Meehanite® castings and automatic lubrication system.
• Comprehensive safety features including electronic spindle brake and CSA certification.

FEATURES:

• Heat-treated and polished lead screws for smooth table movement under load.
• Advanced double nut design for minimal table backlash and precise lateral control.
• Patented vari-disc key for superior wear resistance compared to aluminum or brass keys.
• Balanced variable speed pulleys for reduced vibration and smooth speed transitions.
• Ball bearing motor shaft support for quiet and accurate operation.
• Stainless steel Y-axis way cover for enhanced protection.
• Electronic spindle brake for added safety.
• Mounted control box with easy access to major functions and an emergency stop button.
• Spindle safety guard, halogen machine lamp, and dual locks for added security.
