Description

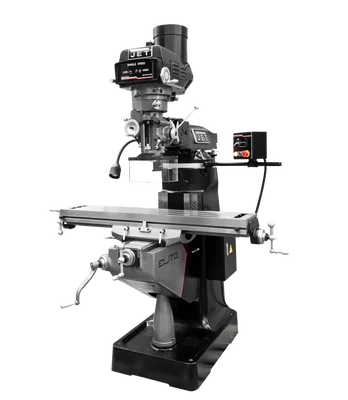

The Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Quill) DRO & XY Pwrfds (894119) is a high-performance milling machine designed for professional metalworking applications requiring exceptional precision and automation.
KEY FEATURES AND BENEFITS:
- Built with Durability in Mind:
- Accurate spindle assembly engineered for strict tolerance requirements, featuring hand-scraped ways for smooth operation and Class 7210 (P4, ABEC-7) precision angular bearings for minimal spindle runout.
- Reliable construction with certified Meehanite castings ensuring the machine retains its rigidity and tolerances over time.
- Automatic lubrication system delivers consistent lubrication every 30 minutes for optimal performance and extended tool life.
- Safety features include CSA/CUS certification and a spindle safety guard.
- Enhanced Functionality and Control:
- 3-Axis ACU-RITE 203 DRO provides precise digital readouts for accurate positioning on all three axes (X, Y, and Quill).
- X and Y-Axis Jet Powerfeeds automate feed rates for efficient and consistent material removal.
- Variable speed motor offers a wide range of speeds (60-4,500 RPM) to tackle various materials and applications.
- Hardened and ground table provides a stable and flat platform for precise machining.
SPECIFICATIONS:
- Accurate spindle assembly with hand-scraped ways and Class 7210 (P4, ABEC-7) precision angular bearings.
- Certified Meehanite castings.
- Automatic lubrication system.
- 3-Axis ACU-RITE 203 DRO.
- X and Y-Axis Jet Powerfeeds.
- Variable speed motor (60-4,500 RPM).
- Hardened and ground table.
HOW TO USE:
- Ensure the machine is properly set up and calibrated before use.
- Adjust the spindle speed using the variable speed control to match the material and application.
- Utilize the X and Y-axis powerfeeds for automated and consistent table movement.
- Refer to the ACU-RITE 203 DRO for precise positioning data.
- Engage the spindle brake and emergency stop button as needed for safety.
BENEFITS OF USING Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Quill) DRO & XY Pwrfds (894119):
- High-performance milling machine designed for professional metalworking applications.
- Exceptional precision and automation with 3-Axis ACU-RITE 203 DRO and X and Y-Axis Powerfeeds.
- Durable construction with certified Meehanite castings and automatic lubrication system.
- Comprehensive safety features including spindle safety guard and CSA/CUS certification.
FEATURES:
- Heat-treated and polished lead screws for smooth table movement under load.
- Advanced double nut design for minimal table backlash and precise lateral control.
- Patented vari-disc key for superior wear resistance compared to aluminum or brass keys.
- Balanced variable speed pulleys for reduced vibration and smooth speed transitions.
- Ball bearing motor shaft support for quiet and accurate operation.
- Stainless steel Y-axis way cover for enhanced protection.
- Electronic spindle brake for added safety.
- Mounted control box with easy access to major functions and an emergency stop button.
