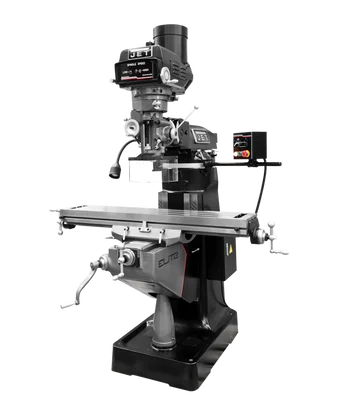

Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894129)

Description

Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894129) is a high-performance vertical milling machine designed for professional applications. This feature-packed mill delivers exceptional accuracy, durability, and ease of use, making it ideal for machinists working with a wide range of materials.

KEY FEATURES AND BENEFITS:

• Hand-scraped Ways: The ways on the ETM-949 are meticulously hand-scraped to a precise finish, ensuring smooth movement of the table and saddle while maximizing oil retention for long-lasting performance.
• High-Precision Spindle: The mill boasts a spindle assembly featuring class 7210 (P4, ABEC-7) precision angular bearings, minimizing runout to a remarkable 0.00012″ for unmatched accuracy in your machining projects.
• Rigid Meehanite Castings: The base of the ETM-949 is constructed from certified Meehanite castings, a highly sought-after material known for its exceptional rigidity and vibration dampening properties. This translates to a stable platform for precise cuts.
• 3-Axis ACU-RITE DRO: The integrated 3-axis ACU-RITE Digital ReadOut (DRO) provides real-time position data on the X, Y, and Z axes, allowing for incredibly precise machine control.

SPECIFICATIONS:

• Table size: 9″ x 49″
• Spindle taper: R-8
• Spindle speeds: Variable, 60-4,500 RPM
• Quill travel: 5″
• Head movement: 90° right & left, 45° forward & backward
• Maximum distance spindle to table: 18-3/4″
• Motor: 3 HP, 230V, 3-phase
• Weight: 2,300 lbs

HOW TO USE:

• Ensure the mill is securely set up on a stable surface.
• Power on the mill and adjust spindle speeds (60-4,500 RPM) as needed.
• Utilize the ACU-RITE DRO for precise positioning.
• Engage the X, Y, and Z-axis powerfeeds for smooth and controlled movement.
• Ensure safety with the spindle safety guard, electronic spindle brake, and emergency stop button.

BENEFITS OF USING JET ETM-949 MILL 3-AXIS ACU-RITE 203 (KNEE) DRO XYZ POWERFEED (894129):

• Exceptional precision and durability for demanding milling applications.
• Automatic lubrication system reduces wear and tear.
• Certified Meehanite® castings ensure long-term machine performance.

FEATURES:

• X, Y, and Z-Axis Powerfeeds: The ETM-949 comes equipped with X, Y, and Z-axis powerfeeds, enabling automated movement of the table and quill for efficient and repeatable machining operations.
• Variable Speed Range: The mill offers a wide variable speed range of 60 to 4,500 RPM, allowing you to select the optimal cutting speed for the material at hand.
• USA-Made Air Draw Bar: The ETM-949 features a convenient and reliable USA-made air draw bar for quick and easy tool changes, minimizing downtime.
• Durable Construction: Key components like the seamless one-piece steel quill and heat-treated lead screws are built to withstand demanding applications.
