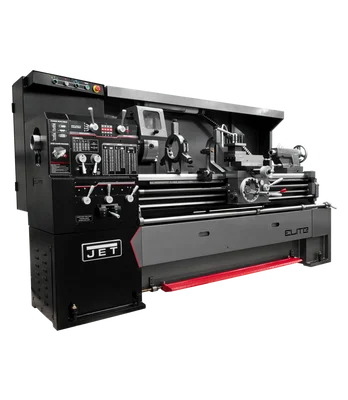

Jet EGH-1740 Lathe With ACU-RITE 203 DRO With Collet Closer (892505)

Description

The Jet EGH-1740 Lathe With ACU-RITE 203 DRO With Collet Closer (892505) is a precision-engineered machine designed for efficient and accurate metalworking. Combining the strength of Meehanite castings with advanced features, this lathe delivers exceptional performance and reliability. Equipped with an ACU-RITE 203 DRO and a collet closer, it offers precise control and enhanced productivity.

KEY FEATURES AND BENEFITS:

• Precision Engineering: Meehanite castings and Turcite-B coatings ensure smooth and accurate movement for high-quality components.
• Versatility: Universal gearbox allows for a wide range of threading without gear changes, accommodating various projects.
• Safety Focus: Enclosed coolant system, nylon safety gears, and overload protection prioritize user safety.
• Accurate Control: ACU-RITE 203 DRO provides precise measurements and control for enhanced precision.
• Efficiency: Collet closer improves workpiece holding and overall efficiency.

SPECIFICATIONS:

• Swing over bed: 17 inches
• Distance between centers: 40 inches
• Spindle bore: 3-1/8 inches
• Motor horsepower: 7.5 HP
• DRO: ACU-RITE 203
• Other specifications: (refer to the provided details)

HOW TO USE:

1. Setting up the Lathe:
   1. Ensure the lathe is placed on a stable, level surface.
   2. Connect the lathe to a power source according to the manual.
   3. Check coolant levels and ensure proper lubrication.
   4. Install the desired cutting tools and workpiece securely.
2. Operating the Lathe:
   1. Turn on the power switch.
   2. Set desired spindle speed and feed rate using the controls.
   3. Engage the feed or threading mechanism as needed.
   4. Monitor the cutting process and make adjustments as required.
   5. Use the ACU-RITE 203 DRO for precise measurements and control.
   6. Safely disengage the machine when finished.
3. Cleaning and Maintenance:
   1. Regularly clean the lathe to prevent debris buildup.
   2. Lubricate moving parts according to the maintenance schedule.
   3. Inspect for wear and tear and replace parts as necessary.
   4. Follow the manufacturer’s recommended maintenance procedures.

BENEFITS OF USING JET EGH-1740 LATHE WITH ACU-RITE 203 DRO WITH COLLET CLOSER (892505):

• Produces high-quality components with precision and accuracy.
• Offers versatility for various metalworking tasks.
• Enhances efficiency with features like the collet closer.
• Prioritizes user safety with multiple safety features.
• Provides accurate control with the ACU-RITE 203 DRO.
• Built with durable materials for long-lasting performance.

FEATURES:

• Meehanite castings
• Turcite-B coatings
• Universal gearbox
• Enclosed coolant system
• Nylon safety gears
• Overload protection
• ACU-RITE 203 DRO
• Collet closer
