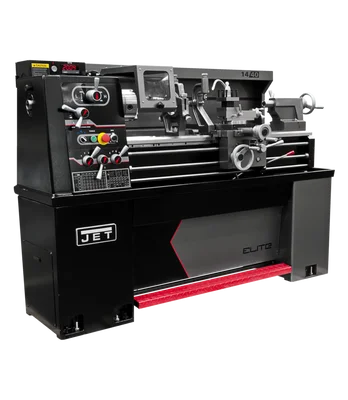

Jet E-1440VS Lathe w/ Newall DP700 DRO & Collet Closer (892471)

Description

Jet E-1440VS Lathe w/ Newall DP700 DRO & Collet Closer (892471) is a compact yet powerful machine tool designed for precision machining. Perfect for educational institutions, small workshops, and engineering laboratories, this lathe offers a balance of performance and efficiency. Equipped with a Newall DP700 Digital Readout (DRO) and a collet closer, it ensures accurate measurements and efficient workpiece handling.

KEY FEATURES AND BENEFITS:

• Compact Design: Ideal for limited workspace while maintaining robust performance.
• Powerful Motor: The 3 HP motor handles a variety of materials and cutting tasks.
• Newall DP700 DRO: Provides precise measurements for accurate machining.
• Collet Closer: Efficiently holds workpieces for enhanced productivity.
• Safety Features: Electromagnetic brake, chuck guards, and enclosed splash guard for operator protection.
• Durability: Certified Meehanite castings ensure long-lasting performance and rigidity.
• Versatility: Inverter drive system offers variable spindle speeds for diverse applications.
• Precision: Hardened and ground gears reduce vibration and deflection for improved accuracy.
• Smooth Operation: Ball bearing-mounted steady and follow rests enable smooth material movement.

SPECIFICATIONS:

• Model: E-1440VS
• Size: 14 x 40
• Swing over bed: 14 inches
• Swing over cross slide: 8-5/8 inches
• Swing through gap: 20 inches
• Distance between centers: 40 inches
• Spindle bore: 1-1/2 inches
• Spindle mount: D1-4
• Spindle taper with sleeve: MT-5
• Motor: 3 HP, 230V, 3Ph
• Spindle speeds: Variable, 0-2200 RPM
• Thread cutting: 4-112 TPI and 22 metric
• Feed rates: 80 longitudinal and cross
• Weight: 1653 lbs
• Dimensions: 77 x 30 x 58 inches

HOW TO USE:

• Set Up:
  • Ensure the lathe is securely placed on a level surface. Connect to a power supply and turn on the machine.
• Safety Checks:
  • Inspect the machine for any damage or loose components. Wear appropriate safety gear, including eye protection and protective clothing.
• Workpiece Mounting:
  • Secure the workpiece in the chuck or between centers, depending on the operation.
• Tool Selection:
  • Choose the appropriate cutting tool for the desired operation and securely mount it in the tool post.
• Speed and Feed Settings:
  • Set the spindle speed and feed rate based on the material and desired cutting conditions.
• Operation:
  • Engage the feed and begin the cutting process, carefully monitoring the workpiece and cutting tool.
• Coolant Application:
  • Apply coolant as needed to improve cutting performance and tool life.
• Shutdown:
  • After completing the operation, stop the spindle and safely remove the workpiece and cutting tool. Clean the machine and its components.

BENEFITS OF USING JET E-1440VS LATHE W/ NEWALL DP700 DRO & COLLET CLOSER (892471):

• Increased Productivity: The lathe’s powerful motor and efficient features enable faster and more efficient machining processes.
• Improved Accuracy: The Newall DP700 DRO and precision components ensure accurate and repeatable results.
• Enhanced Safety: Built-in safety features protect the operator from potential hazards.
• Versatility: Handles a wide range of materials and cutting tasks, making it suitable for various applications.
• Durability: The robust construction and high-quality components guarantee long-term performance.

FEATURES:

• Compact design
• Powerful motor
• Newall DP700 DRO
• Collet closer
• Safety features
• Certified Meehanite castings
• Inverter drive system
• Hardened and ground gears
• Ball bearing-mounted steady and follow rests
• Standard equipment (chuck, faceplates, steady and follow rests, etc.)
