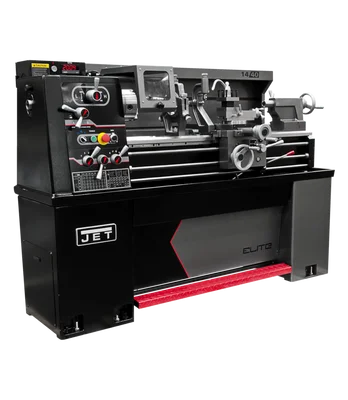

Jet E-1340VS With Taper Attachment (892400)

Description

The Jet E-1340VS With Taper Attachment (892400) is a versatile and powerful 13 x 40 benchtop lathe designed for small shops, schools, and engineering labs. This space-saving lathe packs a punch with a 3 HP, 230V, 3-phase motor and a wide range of features for precise metalworking applications.

KEY FEATURES AND BENEFITS:

• Powerful and Versatile: 3 HP motor delivers ample power for various turning projects. Variable speed control (0-2,200 RPM) allows for optimal cutting speeds for different materials.
• Compact Footprint: Ideal for tight workspaces. Delivers large lathe features in a compact design.
• Precision Machining: Hardened and ground gears minimize vibration for accurate results. Class 7 precision taper roller bearings ensure minimal spindle runout (0.0004″).
• Durable Construction: Certified Meehanite® castings maintain rigidity and precision over time.
• Easy Operation: LED readout displays precise spindle speeds for easy monitoring. Electromagnetic brake provides rapid stopping for safety.
• Includes Standard Accessories: Comes with a 6″ 3-jaw chuck, 12″ faceplate, steady rest, follow rest, 4-way tool post, chuck guard, threading dial, coolant system, and more.

SPECIFICATIONS:

• Swing over bed: 13″
• Swing over cross slide: 7-5/8″
• Spindle bore: 1-1/2″
• Spindle speeds: Variable (0-2,200 RPM)
• Number of longitudinal and cross feed rates: 80
• Motor: 3 HP, 230V, 3-phase
• Weight: 1433 lbs.
• Overall dimensions (L x W x H): 67 x 30 x 57″

HOW TO USE:

1. Setup: Secure your workpiece in the lathe chuck or between the centers. Tighten the chuck or center securely to avoid slippage.
2. Adjust Speed: Select the appropriate spindle speed based on the material and diameter of your workpiece. Refer to a cutting speed chart for recommended speeds.
3. Engage Tools: Mount your cutting tool in the tool post and adjust its height and position for the desired cut.
4. Start Machining: Engage the spindle and begin turning the workpiece. Use the carriage handwheels to feed the cutting tool into the material at a controlled rate.
5. Monitor and Adjust: Continuously monitor the cutting process and adjust the feed rate or tool position as needed to achieve the desired results.

BENEFITS OF USING Jet E-1340VS With Taper Attachment (892400):

• Increased Productivity: Variable speed control and powerful motor enable efficient machining of various materials.
• Space-Saving Design: Ideal for limited work areas without compromising on features.
• Precise Machining: Durable construction and high-quality components ensure accurate results.
• Versatility: Handles a wide range of turning projects with its extensive features and functionalities.
• User-Friendly Operation: Easy-to-use controls and digital readout simplify operation.
• Long-lasting Performance: Built with robust materials for years of reliable service.

FEATURES:

• Inverter drive system for infinitely variable spindle speeds
• Two-speed gearbox for low and high speeds
• Hardened and ground gears for reduced vibration and deflection
• Class 7 precision taper roller bearings
• Electromagnetic brake for rapid stopping
• LED RPM readout for precise speed control
• Ball-bearing mounted steady rest and follow rest
• Chuck guard for increased safety
• Enclosed full-length splash guard to contain chips and coolant
• Certified Meehanite® castings
• Heavy-duty stand with full length foot brake
