Description

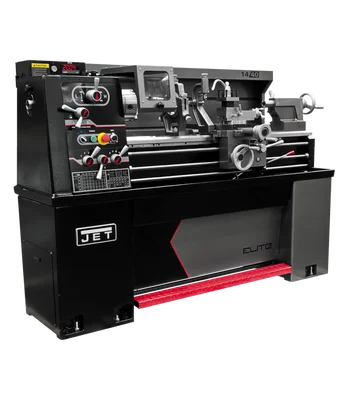

The Jet E-1340VS With Newall DP700 DRO With Taper & Collet Closer (892422) is a powerful and versatile lathe designed for small shops, schools, and engineering labs. Despite its compact footprint, it packs a punch with a 3 HP motor and a variety of features for precise metalworking.
KEY FEATURES AND BENEFITS:
- Compact size: Ideal for workshops with limited space.
- Powerful 3 HP motor: Handles demanding turning applications.
- Variable speed control: Achieve optimal speeds for different materials and projects.
- Digital readout (DRO): Ensures accurate measurement and positioning of your workpiece.
- Taper attachment and collet closer: Expands turning capabilities for various workholding options.
- Ball-bearing mounted steady rest and follow rest: Provides smooth material support for consistent results.
- Hardened and ground gears: Minimizes vibration and deflection for improved accuracy.
- Spacious work area: Swing over bed of 13 inches allows turning of larger diameter materials.
- Durable construction: Certified Meehanite castings ensure long-lasting performance.
- Safety features: Includes electromagnetic brake, chuck guard, and splash guard for operator safety.
SPECIFICATIONS:
- Size: 13″ x 40″
- Motor: 3 HP, 230V, 3-Phase
- Spindle Speeds: Variable (0 – 2,200 RPM)
- Spindle Bore: 1-1/2″
- Swing over Bed: 13″
- Swing over Cross Slide: 7-5/8″
- Distance Between Centers: 40″
- Weight: 1433 lbs
HOW TO USE:
- Installation: Secure the lathe to a sturdy workbench and connect it to the appropriate power supply.
- Workpiece Setup: Mount your workpiece using the 3-jaw chuck or optional tooling (e.g., collet closer). Ensure the workpiece is centered and secured tightly.
- Speed Selection: Choose the appropriate spindle speed based on the material and diameter of your workpiece. Refer to a machining chart for recommended speeds.
- Tool Selection: Select the appropriate cutting tool for your desired operation (e.g., turning, facing, threading). Ensure the tool is properly sharpened and securely mounted in the tool post.
- Machining: Engage the spindle and start turning the workpiece. Use the carriage controls to feed the cutting tool into the workpiece at a controlled rate. The DRO can be used to monitor tool position and ensure accurate machining.
- Safety: Always wear safety glasses, gloves, and appropriate clothing while operating the lathe. Be aware of your surroundings and maintain a safe working distance from the rotating workpiece and cutting tool.
BENEFITS OF USING Jet E-1340VS With Newall DP700 DRO With Taper & Collet Closer (892422):
- Versatility: Handles a wide range of turning applications from simple facing to complex threading.
- Precision: Digital readout (DRO) ensures accurate measurements and consistent results.
- Efficiency: Variable speed control allows for optimal machining speeds, improving productivity.
- Compactness: Ideal for workshops with limited space.
- Durability: Built with high-quality components for long-lasting performance.
- Safety: Equipped with safety features to protect the operator.
FEATURES:
- Inverter drive system for variable speed control
- Electromagnetic brake for rapid stopping
- Steady rest and follow rest with ball-bearing mounted design for smooth material movements
- Chuck guards for increased safety
- Easy chip removal from the front of the machine
- Hardened and ground gears in headstock to reduce vibration and deflection
- Class 7 precision taper roller bearings for accurate spindle runout
- LED RPM readout for precise turning speeds
- Certified Meehanite castings for rigidity and long-lasting performance
- Heavy-duty stand with full length foot brake
- Includes standard equipment like a 3-jaw chuck, faceplate, steady rest, follow rest, tool post, and more.
