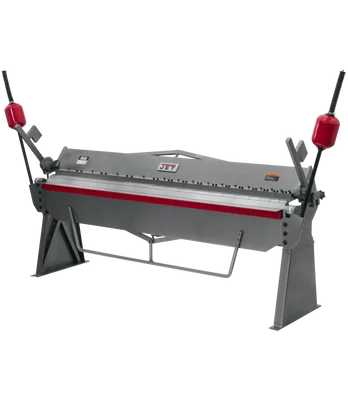

Jet BPF-16100 100″ x 16 Gauge Floor Model Hand Brake (754115)

Description

Jet BPF-16100 100″ x 16 Gauge Floor Model Hand Brake (754115) is a heavy-duty metalworking tool designed for bending and forming sheet metal up to 100 inches in length. Built with durability and precision in mind, this machine is ideal for various metal fabrication applications.

KEY FEATURES AND BENEFITS:

• Handles Thick Materials: Bend up to 16-gauge mild steel, 14-gauge aluminum, and 18-gauge stainless steel.
• Precise Bending: Bored-in-line bed and apron ensure accurate bends every time.
• Versatile: Wide assortment of finger widths for various bending needs.
• Durable Construction: Welded steel plate with heavy-duty reinforcements for long-lasting performance.
• Adjustable: Counterweights and stop rod for customized bending control.

SPECIFICATIONS:

• Style: Floor Box and Pan
• Mild Steel Capacity: 16 gauge
• Bending Length: 100 inches
• Maximum Box Depth: 4 inches
• Maximum Lift of Beam: 2-1/4 inches
• Beam Adjustment: 1 inch
• Finger Nose Angle: 45 degrees
• Nose Radius: 1/32 inch
• Number and Width of Fingers: 15 (various widths)
• Overall Dimensions: 140 x 30 x 76 inches
• Weight: 2,450 pounds
• Gross Weight: 2,992 pounds

HOW TO USE:

• Safety First: Wear appropriate safety gear, including gloves and eye protection.
• Material Preparation: Ensure the sheet metal is clean and free of debris.
• Adjust Finger Width: Select the appropriate finger width for your desired bend.
• Position Material: Place the sheet metal on the brake bed, aligning it with the desired bending line.
• Apply Pressure: Use the hand lever to apply pressure to the sheet metal, creating the desired bend.
• Repeat as Needed: For multiple bends, adjust the material and repeat the process.

BENEFITS OF USING Jet BPF-16100 100″ x 16 Gauge Floor Model Hand Brake (754115):

• Increased Efficiency: Quickly and accurately bend sheet metal for various projects.
• Improved Accuracy: Consistent and precise bends for professional-looking results.
• Versatility: Handle a wide range of materials and bending applications.
• Durability: Built to last with heavy-duty construction.
• Safety: Safe operation with proper use and safety gear.

FEATURES:

• Welded steel plate construction
• Heavy truss rods and braces
• Bored-in-line bed and apron
• Adjustable counterweights
• Stop rod for repeatable bending
• Wide assortment of finger widths
