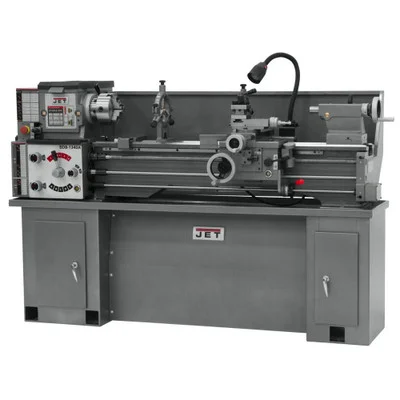

Jet BDB-1340A-TAK 2HP/1PH Lathe with Taper Attachment (321120)

Description

The Jet BDB-1340A-TAK 2HP/1PH Lathe with Taper Attachment (321120) is a 13″ x 40″ bench lathe designed for precision and versatility. Its enclosed gearbox ensures smooth, quiet operation, while the included taper attachment expands your capabilities for creating tapered workpieces. This lathe is ideal for both hobbyists and professionals seeking a reliable and efficient machining solution.

KEY FEATURES AND BENEFITS:

• Enclosed Gearbox: Provides quiet operation, reducing noise in your workspace.
• Helical Cut Gears: Further minimizes noise and vibration for a smoother experience.
• Metric Threading Capability: Expands your options for projects and applications.
• V-way Bed: Induction hardened and ground for exceptional precision and durability.
• Gap Bed Section: Allows you to work with larger diameter workpieces.
• Independent Leadscrew and Feed Rod: Offers greater flexibility in your machining operations.
• Taper Attachment: Enables the creation of tapered parts with ease.
• Comprehensive Accessories: Includes a 6″ 3-jaw chuck, an 8″ 4-jaw chuck, a 12″ faceplate, steady and follow rests, and a metric change gear set.

SPECIFICATIONS:

• Swing Over Bed: 13 inches
• Swing Over Cross Slide: 7-25/32 inches
• Distance Between Centers: 40 inches
• Spindle Bore: 1-3/8 inches
• Spindle Mount: D1-4
• Number of Spindle Speeds: 12
• Range of Spindle Speeds: 60 – 1240 RPM
• Number of Longitudinal and Cross Feed Rates: 40
• Range of Longitudinal Feeds: 0.0036 – .0325 IPR
• Range of Cross Feeds: 0.0012 – .0345 IPR
• Number of Inch Threads: 40
• Range of Inch Threads: 4 – 112 TPI
• Number of Metric Threads: 27
• Range of Metric Threads: 0.02 – 6 mm
• Motor: 2 HP, 230V, 1 Phase

HOW TO USE:

1. Setup: Securely mount the lathe to a sturdy workbench or stand.
2. Workpiece Preparation: Ensure your workpiece is properly prepared and mounted in the chuck or between centers.
3. Tool Selection: Choose the appropriate cutting tool for your desired operation.
4. Speed and Feed Selection: Consult the lathe’s manual to determine the correct speed and feed rates for your material and tool.
5. Operation: Begin machining, using the various controls to guide the cutting tool and achieve the desired shape.
6. Safety: Always wear safety glasses and follow safe operating procedures.

BENEFITS OF USING THE Jet BDB-1340A-TAK 2HP/1PH Lathe with Taper Attachment (321120):

• Precision: Create accurate and precise parts with ease.
• Versatility: Tackle a wide range of projects, from small components to larger workpieces.
• Quiet Operation: Enjoy a quieter working environment thanks to the enclosed gearbox.
• Durability: Benefit from the lathe’s robust construction and high-quality components.
• Ease of Use: Intuitive controls and a user-friendly design make operation straightforward.

FEATURES:

• T-slotted Compound Slide: Offers flexibility for tool positioning.
• Carriage Mounted Spindle Control Lever: Provides convenient access to spindle control.
• Automatic Feeding and Threading: Fully interlocked for safety and ease of use.
• Splash Guard: Protects the work area from chips and coolant.
