Description

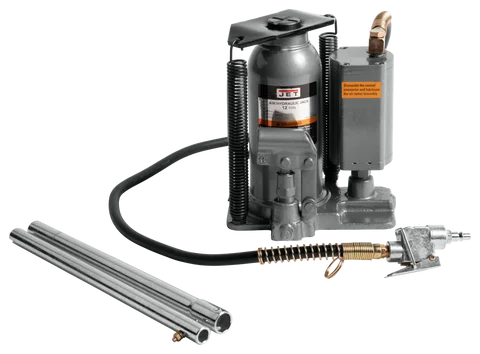

The Jet AHJ-12 12 Ton Air / Hydraulic Bottle Jack with CS (456612) is a 12-ton air/hydraulic bottle jack designed for heavy-duty lifting, pushing, spreading, bending, pressing, or straightening tasks. This versatile tool is built with durability and performance in mind, making it suitable for a wide range of applications in industrial and automotive settings.
KEY FEATURES AND BENEFITS
- Powerful Lifting Capacity: Handles loads up to 12 tons with ease.
- Versatile Operation: Works in upright, horizontal, or angled positions.
- Durable Construction: Electrically welded bases and cylinders prevent leaks.
- Efficient Air Pump: Connects to a pneumatic source for faster lifting.
- Safe and Reliable: Meets ANSI/ASME B30.1 and PALD-1 standards.
- Portable Design: Includes a heavy-duty molded case for easy transport.
SPECIFICATIONS
- Capacity: 12 tons
- Minimum Height: 9-2/3 inches
- Maximum Height: 18-2/3 inches
- Piston Lift: 4-1/2 inches
- Base Dimensions: 8-1/4 x 6-2/7 inches
- Weight: 25 pounds
- Air Pressure Required: 90-145 PSI
- Complies with ANSI/ASME B30.1 and PALD-1 Standards
HOW TO USE
- Inspect the Jack: Check for any damage or leaks before use.
- Position the Jack: Place the jack on a stable and level surface.
- Extend the Jack: Use the manual pump or air pump to extend the jack to the desired height.
- Position the Load: Carefully position the load under the lifting point of the jack.
- Lift the Load: Slowly and steadily pump the jack to lift the load.
- Lower the Load: To lower the load, open the release valve.
- Clean the Jack: Wipe down the jack with a clean cloth after use.
BENEFITS OF USING JET AHJ-12 12 TON AIR / HYDRAULIC BOTTLE JACK WITH CS (456612)
- Increased Efficiency: The air pump significantly speeds up lifting processes.
- Versatility: Handles a wide range of tasks beyond just lifting.
- Durability: Built to withstand heavy use and harsh conditions.
- Safety: Adherence to industry standards ensures reliable performance.
- Portability: The included case makes transportation convenient.
FEATURES
- Labor-saving air pump
- Electrically welded construction
- High and low-temperature tolerance
- Heavy-duty molded case
- Multiple operating positions
