Description

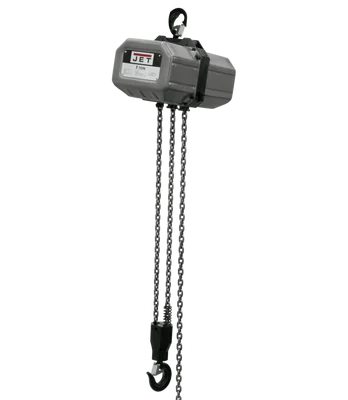

Jet 1SS-3C-10 3PH 1 Ton Electric Hoist w/ 10′ Lift (131000) is a 1-ton electric chain hoist designed for efficient and safe lifting in commercial and industrial settings. Built with durability and safety in mind, this hoist is a reliable tool for various applications.
KEY FEATURES AND BENEFITS:
- Safe Lifting: Equipped with a slip clutch overload protection mechanism to prevent damage from overloading, a reverse phase relay for electrical safety, and a DC electromagnetic brake to secure loads even during power interruptions.
- Durable Construction: Features a sealed gear train for minimal maintenance, a grade 80 load chain for strength, and an all-steel construction with a powder coat finish for protection against elements.
- Efficient Operation: Delivers a lifting speed of 24 feet per minute with a duty cycle of 30% for consistent performance.
- Easy Control: Comes with a 24-volt push-button controller for precise and comfortable operation.
SPECIFICATIONS:
- Capacity: 1 ton (2200 lbs)
- Lift: 10 feet
- Motor: 2-1/7 HP, 460V, 3-phase
- Duty Cycle: 30%
- Duty Cycle Rating: H4
- Lifting Speed: 24 feet per minute
- Max. Number of Starts: 180 per hour
- Max. On Time: 18 minutes per hour
- Weight: 161 lbs
- Headroom: 24-7/16 inches
- Overall Width: 11.81 inches
- Motor Current: 12 amps
- Warranty: 2 years
HOW TO USE:
- Inspect the hoist: Before use, carefully examine the hoist for any signs of damage or wear.
- Check electrical connection: Ensure the power supply is compatible and the connection is secure.
- Attach the load: Securely hook the load chain to the load, making sure it is balanced and centered.
- Operate the control pendant: Use the up and down buttons to raise or lower the load.
- Monitor the load: Continuously observe the load during lifting and lowering.
- Lower the load: Gently lower the load to the desired position.
- Disconnect power: Turn off the power supply after use.
BENEFITS OF USING Jet 1SS-3C-10 3PH 1 Ton Electric Hoist w/ 10′ Lift (131000):
- Increased efficiency and productivity in lifting tasks.
- Reduced risk of injuries due to manual lifting.
- Improved workplace safety with built-in safety features.
- Durable construction for long-lasting performance.
- Easy to operate and maintain.
FEATURES:
- Slip clutch overload protection
- Reverse phase relay
- DC electromagnetic brake
- Upper and lower limit switches
- Sealed gear train
- Grade 80 load chain
- All steel construction with powder coat finish
- 24-volt push-button controller
