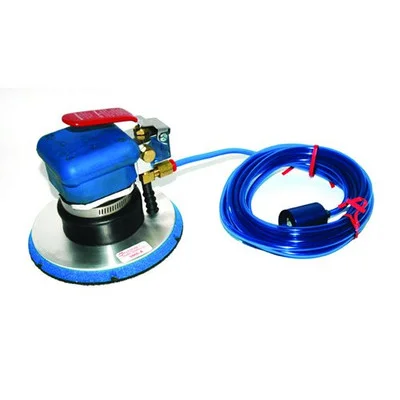

Hutchins 6″ Hook Pad 3/32″ Offset Water Sander (7044-6)

Description

The Hutchins 6″ Hook Pad 3/32″ Offset Water Sander (7044-6) is a premium pneumatic orbital sander crafted for achieving exceptional finishes through wet sanding. Engineered with a specific 3/32″ offset, this tool delivers a gentle yet effective sanding action, making it perfect for intricate pre- and post-paint work, color sanding, and clear coat defect removal in automotive, marine, and industrial environments. Its innovative “thru-the-pad” water feed system ensures continuous hydration, cooling the surface, minimizing dust, and promoting uniform grit penetration for a consistently smooth result. Built in America, the 7044-6 combines a powerful, air-efficient motor with an ergonomic design, providing both performance and comfort for extended use in demanding professional settings.

KEY FEATURES AND BENEFITS:

• Precision Orbital Action: The 3/32″ offset orbital motion delivers a fine, consistent scratch pattern, ideal for delicate finishing tasks, preparing surfaces for paint, or refining clear coats without aggressive material removal.
• Integrated Water Delivery System: Features a unique “thru-the-pad” water feed that siphons water from an external source, ensuring constant lubrication and cooling of the sanding surface. This drastically reduces airborne dust, prevents sandpaper loading, and optimizes abrasive performance.
• High-Performance Air Motor: Equipped with a balanced rotor and self-expanding vanes, the motor provides reliable power and unexcelled torque while remaining air-efficient. A protective bypass system safeguards internal components from moisture, extending the tool’s lifespan.
• Versatile Pad Compatibility: Designed primarily for 6-inch hook pads, allowing for quick and easy abrasive changes. It can also adapt to 5-inch pads for specific applications.
• Ergonomic and Lightweight Design: At approximately 4 lbs 1 oz, its balanced and comfortable design reduces user fatigue during prolonged operation, enhancing productivity and control.
• Professional-Grade Durability: Constructed with high-quality components for sustained performance in demanding industrial and high-production environments.

SPECIFICATIONS:

• Model Number: 7044-6 (Water Bug II)
• Sanding Action: Orbital
• Offset: 3/32″
• Pad Size: 6-inch hook pad (can also accommodate 5-inch pads)
• RPM: 8,500+
• Air Consumption: 10.4 CFM at 90 PSI
• Noise Level: 81 dBa
• Weight: 4 lbs 1 oz
• Included in Product: General purpose pad, interface finishing pad, 20-foot high-pressure water hose

HOW TO USE:

1. Prepare the Sander: Attach the appropriate 6-inch (or 5-inch) hook-and-loop sanding abrasive to the pad.
2. Connect Air Supply: Connect your air compressor line to the sander’s air inlet. Ensure your air compressor can provide at least 10.4 CFM at 90 PSI for optimal performance.
3. Connect Water Source: Attach the included 20-foot high-pressure water hose to the sander’s water inlet. Place the other end of the hose into a clean bucket or container of water. The sander uses a venturi system to draw water through the pad.
4. Start Sanding: Turn on the air supply. The sander will begin its orbital motion and simultaneously draw water through the pad to the sanding surface.
5. Maintain Contact: Apply consistent, light pressure and move the sander in overlapping passes over the work surface. Allow the tool and water to do the work; excessive pressure is not needed.
6. Monitor Water Flow: Periodically check that water is continuously flowing to the pad to ensure proper cooling, dust control, and lubrication. Refill your water container as needed.
7. Clean Up: After use, disconnect the air and water lines. Clean any residue from the pad and store the sander in a dry place.

BENEFITS OF USING HUTCHINS 6″ HOOK PAD 3/32″ OFFSET WATER SANDER (7044-6):

• Superior Surface Preparation: Creates an exceptionally smooth, uniform surface, ready for painting, polishing, or clear coat application.
• Reduced Dust and Contaminants: The wet sanding process effectively traps sanding dust and debris in the water, preventing airborne particles and maintaining a cleaner work environment.
• Extended Abrasive Life: Continuous water flow cools the sanding surface and prevents abrasive clogging, significantly prolonging the life of your sandpaper.
• Minimized Heat Buildup: Water acts as a coolant, preventing excessive heat generation on the work surface, which is crucial for heat-sensitive materials like paint and clear coats.
• Enhanced Finish Quality: The combination of precise orbital action and constant water flow helps eliminate swirl marks and promotes a more consistent scratch pattern, leading to a higher-quality final finish.

FEATURES:

• American-made construction for reliability
• Pneumatic power for consistent, high-speed operation
• Balanced motor design reduces vibration
• Bypass system protects internal motor components
• Accepts standard 6-inch hook-and-loop abrasive discs
• Lightweight profile improves maneuverability
• Unique venturi system for water siphoning
• Quiet operation at 81 dBa
