Description

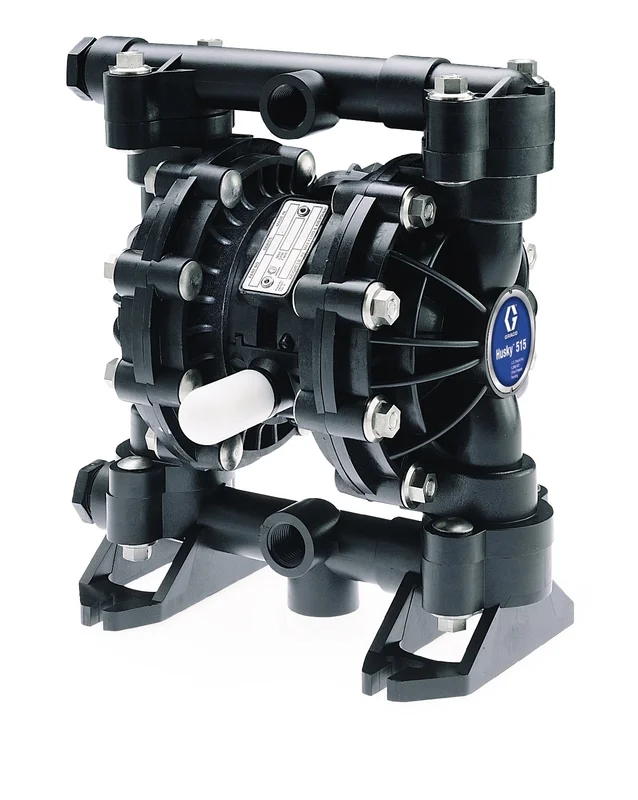

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Centre and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Split manifold option to pump multiple fluids without mixing
- Operates on as little as 1.4 bar, 0.14 MPa (20 psi)
- Delivery up to 56.7 lpm (15 gpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
UPC Product: 00633955648067 Family Code: FAMPDI Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 FT3 |0 M3 Chargeable Weight: 54.83 LBS | 24.87 KG
Technical Specifications
| Application | Industrial |
|---|---|
| Compatible Material | Antifreeze, Windshield Washer Fluid |
| Fluid Inlet Size (cm) | 1.9050 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.70 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | 防冻剂，挡风玻璃溶剂, Anti-Freeze, Windshield Solvent, Anti-Freeze, Windshield Solvent, Antigel, solvant pour pare-brise, 부동액, 윈드실드 솔벤트, Frostschutzmittel, Windschutzscheiben-Lösungsmittel, Antivries, voorruitoplosmiddel |
| Includes | AODD 泵, AODD Pump, AODD Pump, Pompe AODD, AODD 펌프, Luftbetriebene Doppelmembran-Pumpe, AODD-pomp, 空气调节器, Air Regulator, Air Regulator, régulateur d’air , 에어 레귤레이터, Luftregler, luchtregelaar, 流体连接软管, Fluid Connect Hose, Fluid Connect Hose, flexible de raccordement du fluide , 유체 연결 호스, Materialanschlussschlauch, vloeistofverbindingsslang, 空气连接软管, Air Connect Hose, Air Connect Hose, flexible de raccordement d’air , 에어 연결 호스, Luftverbindungsschlauch, luchtverbindingsslang, 空气截止阀, Air Shut-Off Valve, Air Shut-Off Valve, vanne d’arrêt d’air , 에어 차단 밸브, Luftabsperrventil, luchtafsluitventiel, 壁式支架, Wall Mount Bracket, Wall Mount Bracket, support pour montage mural , 벽 장착형 브래킷, Wandmontagehalterung, wandmontageconsole, 吸料配件包, Suction Kit, Suction Kit, kit d’aspiration , 흡입 키트, Ansaug-Satz, aanzuigset, 散热盘配件包, Thermal Relief Kit, Thermal Relief Kit, kit de décompression thermique, 열 부하 경감 키트, thermischer Entlastungssatz, thermische ontluchtingsset |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Acetal, Buna-N |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 70 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 15 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 70 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (cm) | 0.2381 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.3813 |
| Series | 515 |
| Type | Diaphragm Pump Package |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Model | Husky |
