Description

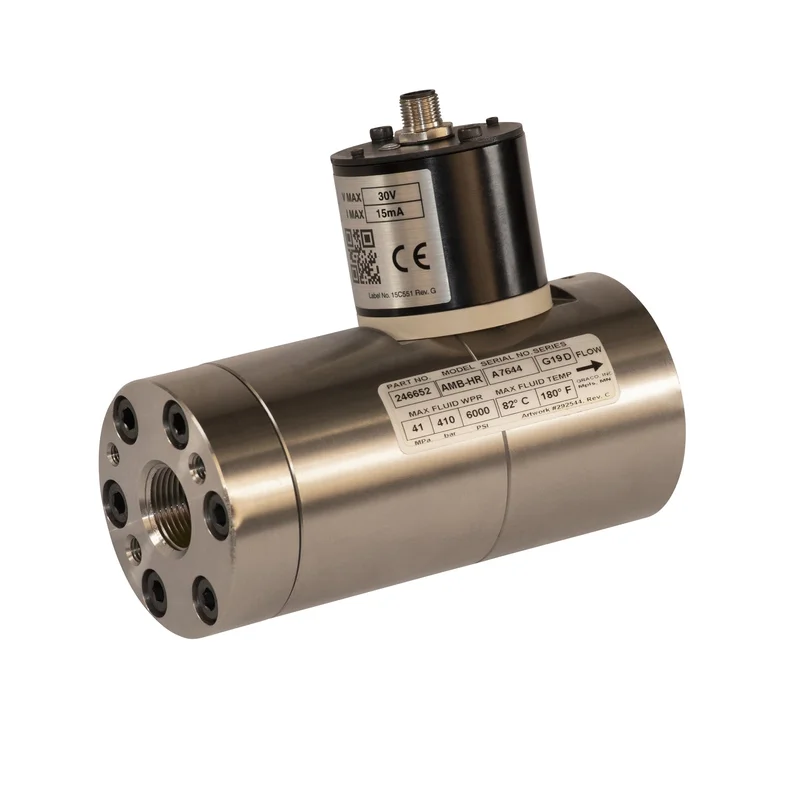

The High Resolution Helical Gear Flow Meter is used for precise and accurate flow rate measurements of a variety of materials.
- Positive displacement, helical gear flow meter
- Designed to detect a wide range of flow rates
- Highly accurate, even with low flow rates
- CE-marked for easy integration
- Stainless steel, water-base compatible for medium to high viscosity materials
UPC Product: 00633955025455Family Code: FAMAPAUnit of Measure: EAHeight: 9.6 IN |24.384 CMLength: 15.6 IN |39.624 CMWidth: 12 IN |30.48 CMVolume: 1.04 FT3 |.029 M3Chargeable Weight: 12.76 LBS | 5.79 KG
Technical Specifications
| Compatible Material | Solventborne Paints, Solventborne Resins, Oil, Catalysts |
|---|---|
| For Use With | Proportioning Equipment, Equipos de dosificación |
| Includes | Flow Meter, Caudalímetro, sensor, Sensor |
| Inlet Size (in) | 3/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (cc/min) | 7550 |
| Maximum Fluid Pressure (bar) | 410 |
| Maximum Fluid Pressure (kPa) | 41000 |
| Maximum Fluid Pressure (psi) | 6000 |
| Maximum Viscosity (cP) | 1000000 |
| Minimum Flow Rate (cc/min) | 190 |
| Minimum Viscosity (cP) | 30 |
| Number of Pieces | 1 |
| Overall Height (cm) | 14.2 |
| Overall Height (in) | 5.6 |
| Overall Height (mm) | 142 |
| Overall Length (cm) | 15.5 |
| Overall Length (in) | 6.1 |
| Overall Length (mm) | 155 |
| Type | Helical Gear Flow Meter |
| Flow Control Type | Regulation |
| Maximum Fluid Temperature (°F) | 180 |
| Maximum Fluid Temperature (°C) | 82 |
| Maximum Working Pressure (MPa) | 41 |
| Maximum Working Pressure (psi) | 6000 |
| Maximum Working Pressure (kPa) | 41000 |
| Maximum Working Pressure (bar) | 410 |
