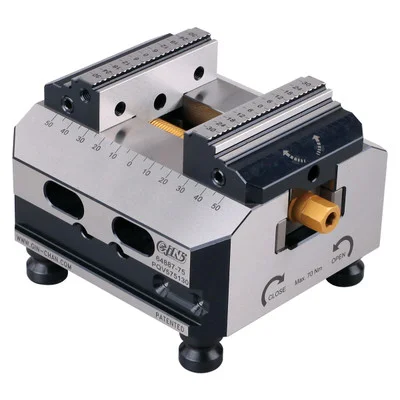

HHIP 3900-2239 5-Axis Self-Center CNC Vise Reverse 75 mm Jaws 96 mm Pin Space is a precision workholding solution designed for high-performance five-axis machining operations. Featuring self-centering jaws and a patented quick reversible jaw system, this vise allows fast setup and reliable clamping of workpieces. The 1.50° swing design on one side of the clamping jaw improves grip on non-parallel workpieces. With omni-directional clamping and a Zero-Point Vise System compatible with industry-standard 52 mm pin spacing, this vise ensures uniform, precise, and repeatable clamping for complex machining tasks. Fully protected lead screws and an angle lock mechanism prevent workpiece lifting, while the cam-operated pin-locking mechanism secures all pins simultaneously for enhanced stability.
Features:
- Quick reversible jaw change with patented design for efficiency.
- Self-centering jaws with 1.50° swing for non-parallel workpieces.
- Zero-Point Vise System enables omni-directional clamping with 52 mm pin spacing.
- Cam-operated pin-locking mechanism secures all four pins simultaneously.
- Fully protected and sealed lead screws with angle lock mechanism.
- Hardened serrated 75 mm jaws with wide clamping range.
- Compact design for easy accessibility and setup on five-axis machines.
Benefits:
- Ensures high-precision, repeatable clamping for complex machining tasks.
- Omni-directional force vector transmission provides uniform clamping pressure.
- Quick jaw changes and self-centering reduce setup time and improve workflow.
- Robust construction resists high cutting forces, maximizing stability and load capacity.
- Wide clamping range and flexible mounting enhance versatility on CNC machines.
Technical Specifications:
- Model: 3900-2239
- Jaw Width: 75 mm
- Pin Space: 96 mm (compatible with 52 mm Zero-Point System)
- Clamping Force: Up to 14 kN
- Jaw Design: Hardened serrated teeth
- Material: Precision machined steel with hardened components
- Mounting: Compatible with quick clamping system bars for flexible positioning
- Applications: 5-axis CNC machining, self-centering workholding, high-precision setups
