Description

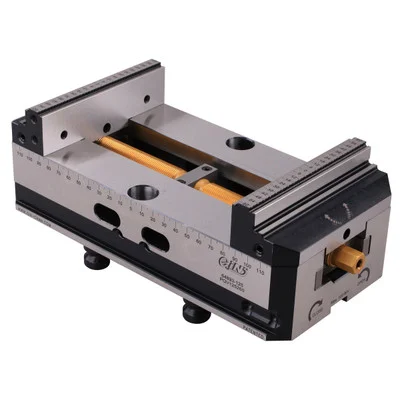

HHIP 3900-2242 5-Axis Self-Center CNC Vise Reverse 125mm Jaws 96mm Pin Space is a precision-engineered CNC vise designed for demanding 5-axis machining operations. Featuring 125mm hardened serrated jaws and 96mm pin spacing, this self-centering vise provides omni-directional clamping for maximum stability and repeatability. The quick reversible jaw system and patented 1.5° swing design allow secure gripping of non-parallel workpieces. Fully sealed lead screws and an angle lock mechanism prevent workpiece lifting, while the Zero-Point Vise System ensures fast and accurate positioning. Built for professional machining, it offers exceptional clamping force, precision, and versatility for complex milling tasks.
Features:
- 5-axis self-centering CNC vise with reverse jaw functionality.
- 125mm hardened serrated jaws for strong and precise gripping.
- 96mm pin spacing compatible with Zero-Point workholding systems.
- Quick reversible jaw change with patented design for efficiency.
- Swing 1.5° jaw design ensures optimal grip on non-parallel workpieces.
- Fully sealed lead screws and angle lock mechanism prevent lifting.
- High clamping force up to 14kN with maximum repeatability.
- Compact design for accessibility and flexible mounting on clamping bars.
Benefits:
- Provides uniform omni-directional clamping for complex 5-axis operations.
- Ensures stable and precise workholding, reducing vibration and errors.
- Quick jaw changes save time and improve workflow efficiency.
- High clamping force and robust construction handle heavy cutting loads.
- Self-centering capability improves setup speed and machining accuracy.
Technical Specifications:
- Model: 3900-2242
- Jaw Width: 125mm
- Pin Spacing: 96mm (Zero-Point System compatible)
- Clamping Force: Up to 14kN
- Jaw Design: Hardened serrated teeth, swing 1.5° for non-parallel workpieces
- Mount Type: Quick clamping system compatible with standard clamping bars
- Construction: Precision-machined, fully sealed lead screws, angle lock mechanism
- Applications: 5-axis CNC machining, milling, precision metalworking, complex workpiece clamping
