Description

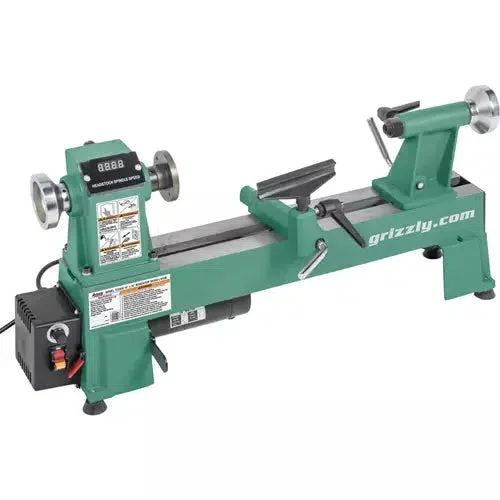

T25926 10″ x 18″ Variable-Speed Benchtop Wood Lathe

Everything you need in a benchtop lathe.

The Grizzly T25926 10″ x 18″ Variable-Speed Wood Lathe comes with a standard 1/2 HP motor.

The variable speeds from 650–3800 RPM give you plenty of power and flexibility for any project. You can read the exact RPM on the digital readout display.

Heavy-duty cast-iron construction provides plenty of mass and stability for wood turning.

Bolt up to the 3-1/8″ faceplate and turn plates and bowls up to 10″ wide and spindles up to 18″ long.

Add the optional T27327 Bed Extension and you’ve got a full-size lathe that can turn up to 40″ between centers.

The manual for the T25926 was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual provides detailed instructions on how to assemble and maintain your lathe.

SPECIFICATIONS:

• Motor: 1/2 HP, 110V, single-phase, 3.4A
• Swing over bed: 10″
• Swing over tool rest base: 7-1/4″
• Distance between centers: 18″
• Spindle speeds: Variable, 650–3800 RPM
• Spindle threads: 1″ x 8 TPI
• Spindle bore: 3/8″
• Spindle taper: MT#2
• Tailstock taper: MT#2
• Tool rest width: 5-3/4″
• Tool rest post diameter: 5/8″
• Footprint: 8″ x 30″
• Overall dimensions: 37-3/4″ W x 12″ D x 15″ H
• Approximate shipping weight: 78 lbs.

FEATURES:

• Digital readout display
• Quick-release on rest and tailstock for easy adjustment
• Solid cast-iron construction
• Includes 3-1/8″ faceplate
• Includes MT#2 live and spur centers
• Includes 5-3/4″ tool rest
• 1-year limited warranty
