Description

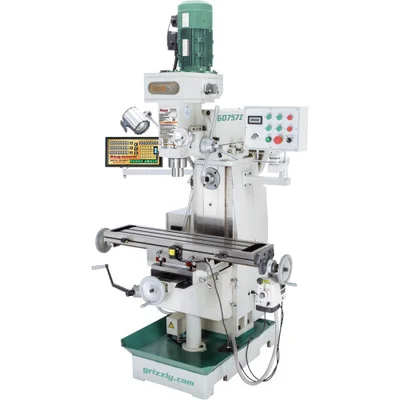

Grizzly Industrial 9″ x 39″ 3 HP Variable-Speed Horizontal/Vertical Mill with DRO (G0757Z) is a versatile machining center designed for precision and efficiency. Featuring both horizontal and vertical spindles, each with its dedicated motor, this mill is perfect for diverse machining applications.
With electronic variable-speed control and a digital readout, the mill ensures precise adjustments for every project. The 3-axis DRO enhances accuracy, while the built-in coolant system and LED work light improve operational efficiency.
- Specifications and Dimensions
- Vertical spindle motor: 3 HP, 220V, 3-phase (with inverter for single-phase power), 9.3A
- Required power supply: 220V, single-phase, min. 15A circuit
- Horizontal spindle motor: 2 HP, 220V, single-phase, 8.6A
- Vertical spindle speeds: Variable, 100–2000 RPM
- Horizontal spindle speeds: 8, 72–1300 RPM
- Spindle taper: R-8
- Spindle travel: 5″
- Table size: 9-1/2″ x 39-3/8″
- Table travel (longitudinal): 23-1/2″
- Table travel (cross): 8-1/2″
- Knee travel (vertical): 12-1/2″
- Table rotation: 45° L/R
- Head turret/column swivel: 180°
- Head tilt: 90° L/R
- T-slots: Three 5/8″ slots, 3″ on center
- Overall dimensions: 53-1/2″ W x 55″ D x 82″ H
- Approximate shipping weight: 2050 lbs.
- Key Features and Benefits
- Dual spindle operation for horizontal and vertical milling versatility.
- Efficient Delta variable-frequency drive (VFD) ensures motor longevity.
- 3-axis DRO provides accurate measurements and easy setup.
- Includes
- Arbor adapter, R-8 to MT #3
- 1″ and 1-1/4″ horizontal arbors with spacers
- 1–13mm drill chuck with key and arbor
- MT #3 to MT #2 adapter sleeve
