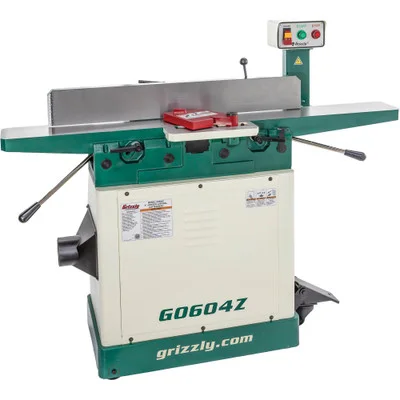

Grizzly Industrial 6″ Jointer with Spiral Cutterhead (G0604Z) is your go-to tool for precision woodworking. Featuring a 4-row spiral cutterhead with 30 indexable carbide inserts, it delivers smooth, tearout-free cuts for a flawless finish.
Built for convenience, this jointer includes a long infeed table and a center-mounted fence for perfectly straight edges. The precision-ground cast-iron tables feature lever controls for easy adjustments, and the cabinet stand includes a built-in mobile base for seamless portability.
- Specifications and Dimensions
- Motor: 1.7 HP, 110V/220V (prewired 110V), single-phase, 15A/7.5A
- Maximum width of cut: 6″
- Maximum depth of cut: 1/8″
- Maximum rabbeting depth: 1/2″
- Cutterhead diameter: 3″
- Cutterhead type: 4-row spiral with 30 indexable carbide inserts
- Cutterhead speed: 5667 RPM
- Table size: 6″ x 55″
- Fence size: 5″ x 36″
- Minimum stock length: 8″
- Minimum stock thickness: 1/2″
- Dust port size: 4″
- Footprint: 20-1/2″ x 27″
- Overall dimensions: 56″ W x 23-1/2″ D x 47″ H
- Approximate shipping weight: 473 lbs.
- Key Features and Benefits
- 4-row spiral cutter head with 30 carbide inserts for tear-out-free cuts
- Parallelogram table adjustment system for consistent precision
- Extra-long infeed table and center-mounted fence for straight cuts
- Built-in mobile base and cabinet stand for added portability
