Description

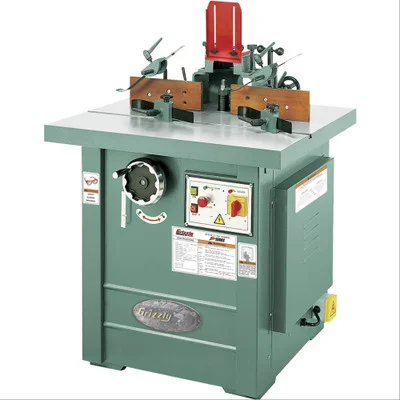

Grizzly Industrial 5 HP Professional Spindle Shaper Z Series (G5912Z) offers unmatched power and precision for heavy-duty shaping tasks. Equipped with a 5 HP motor and interchangeable spindles, this industrial-grade spindle shaper handles large cutters up to 5-7/8″ in diameter with ease. The micro-adjustable wooden split fence ensures full edge support for smooth, accurate results every time.
Designed for professional and industrial applications, this spindle shaper features a precision-ground cast-iron table, a bolted cutter guard, and spring-steel hold-downs for enhanced safety and performance.
- Specifications and Dimensions
- Motor: 5 HP, 220V, single-phase, 25A
- Maximum cutter height: 5-1/8″
- Maximum cutter diameter: 5-7/8″
- Spindle diameters: 3/4″, 1″, 1-1/4″
- Spindle speeds: 3600, 5100, 8000, 10,000 RPM
- Spindle travel: 3-1/4″
- Table size: 28″ x 35-1/2″
- Floor-to-table height: 34-3/4″
- Overall dimensions: 34-3/4″ W x 35-1/2″ D x 42″ H
- Approximate shipping weight: 604 lbs.
- Key Features and Benefits
- Precision-ground cast-iron table for stability and accuracy
- Interchangeable spindles: 3/4″, 1″, and 1-1/4″
- Variable spindle speeds for diverse shaping tasks
- Four spring-steel hold-downs ensure safety and precision
- Micro-adjustable wooden split fence for fine-tuning support
- Includes three table inserts and assorted wrenches
