Description

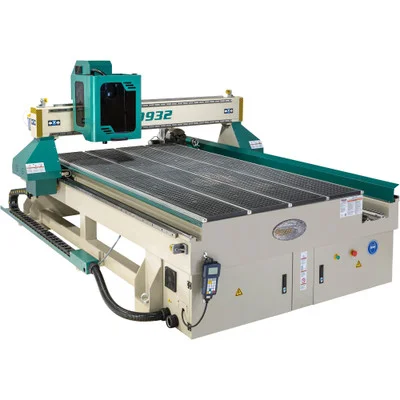

Grizzly Industrial 4′ x 8′ CNC Router with Rotary 4th Axis (G0932) delivers advanced machining capabilities for both seasoned professionals and beginners. With a full-sized table accommodating a 4′ x 8′ sheet, it is ideal for a wide variety of cutting and shaping applications using wood, plastics, and other non-metallic materials.
Equipped with a rotary 4th axis, a vacuum table with four independent zones, and a Z-axis tool setter, this CNC router ensures precision and ease of use. The helical rack-and-pinion X and Y-axis travel, combined with a ball-screw-driven Z-axis, guarantees smooth and accurate movements for intricate designs.
- Specifications and Dimensions
- Spindle motor: 4 HP, 220V, 3-phase, 12.5A
- Axis motors: (x4) NEMA 34, 4.2A
- Swing over bed: 7-7/8″
- X-Axis travel: 51-3/16″
- Y-Axis travel: 98-7/16″
- Z-Axis travel: 7-7/8″
- XY- rapid speed: 1181 IPM
- Z- rapid speed: 400 IPM
- Rotary rapid speed: 472 IPM
- Cutting area: 51-3/16″ x 98-7/16″ x 7-7/8″
- Cutting accuracy: +/-0.002″
- Table size: 49″ W x 99″ L
- Overall size: 93-1/2″ W x 123″ D x 63″ H
- Approximate shipping weight: 3087 lbs.
- Key Features and Benefits
- Full-sized table for 4′ x 8′ sheets and large projects
- Rotary 4th axis for machining cylindrical workpieces
- Vacuum table with four independently controlled zones
- RichAuto B18 controller for easy operation and work offset saving
- Helical rack-and-pinion X- and Y-axis travel for precise movements
- Tool touch-off pad for fast Z-height setup
- HSD Air-cooled spindle with ER25 collets for tooling flexibility
