Description

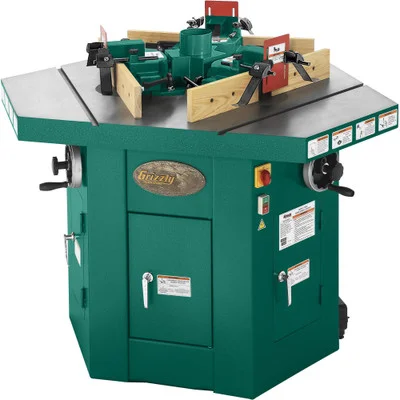

Grizzly Industrial 3 HP Three Spindle Shaper (G9933) is a powerful and efficient tool designed to save time in busy production and cabinet shops. Featuring three independent 3 HP motors, this shaper allows for multiple setups at once, eliminating the need for frequent cutter changes. Each spindle operates independently, offering forward, reverse, and stop options for precise control.
It handles substantial wood dust efficiently, with a recommended 400 CFM dust collection capacity per port. The large table and versatile spindle capabilities make it perfect for cutting, shaping, and profiling a wide range of materials.
- Specifications and Dimensions
- Motors (x3): 3 HP, 220V, single-phase, 18A
- Maximum cutter height: 4-9/16″
- Maximum cutter diameter: 6″
- Spindle diameter: 1-1/4″
- Spindle length: 5-7/8″
- Spindle speeds: 7000 and 10,000 RPM
- Table size: 21-3/4″ x 28-1/4″
- Overall dimensions: 45-1/2″ W x 52-1/8″ D x 45″ H
- Approximate shipping weight: 1260 lbs.
- Key Features and Benefits
- Three 3 HP motors with separate forward/reverse controls
- Micro-adjustable fences for precise and clean cuts
- Sturdy cast-iron cabinet ensures durability and stability
- Three 4-inch dust ports for efficient wood dust management
