Description

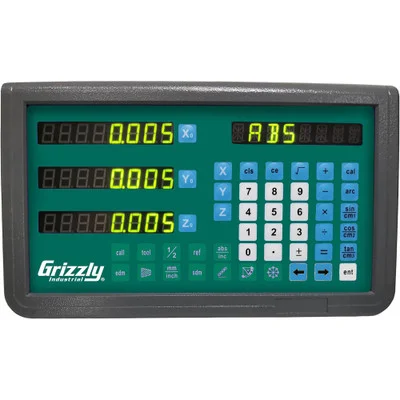

Grizzly Industrial 3-Axis Mill DRO System includes 7-7/8″, 13-13/16″, and 17-3/4″ linear optical scales, each engineered for smooth motion and durability. The advanced digital readout (DRO) features include pitch circle diameter, line hole positioning, and inclined machining, making it the perfect choice for complex and repetitive tasks.
Housed in a rugged aluminum case, the DRO is protected against dust, fumes, and coolant, ensuring long-term performance. The P5-grade bearings in the slide carriers provide unmatched accuracy and stability, while the plastic seals enhance oil resistance.
- Specifications and Dimensions
- T33002: Scale travel lengths: 7-7/8″, 13-13/16″, 17-3/4″, Accuracy: ±6μm
- T33005: Scale travel lengths: 7-7/8″, 19-11/16″, 19-11/16″, Accuracy: ±6μm, ±10μm
- T33011: Scale travel lengths: 9-7/8″, 13-13/16″, 23-5/8″, Accuracy: ±6μm, ±10μm
- T33013: Scale travel lengths: 11-13/16″, 13-13/16″, 29-9/16″, Accuracy: ±6μm, ±10μm
- T33015: Scale travel lengths: 13-13/16″, 17-3/4″, 29-9/16″, Accuracy: ±6μm, ±10μm
- T33020: Scale travel lengths: 15-3/4″, 15-3/4″, 31-1/2″, Accuracy: ±6μm, ±10μm
- Resolution: 5μm
- Optical period: 20μm
- Optical measurement: Transmissive infrared
- Repeatability: 2μm
- Seal protection: IP53
- Scanning head sliding system: Vertical five-bearing sliding system
- Key Features and Benefits
- Includes 7-7/8″, 13-13/16″, and 17-3/4″ linear optical scales for enhanced precision
- Advanced DRO functions: pitch circle diameter, inclined machining, and radius calculations
- P5-grade bearings ensure smooth and accurate scale motion
