Description

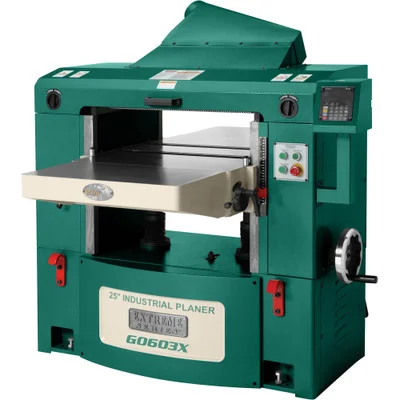

Grizzly Industrial 25″ 15 HP 3-Phase Extreme-Series Planer w/ Helical Cutterhead (G0603X) delivers smooth shearing cuts, minimal tear out, and a superior finish on a variety of wood surfaces. This planer is equipped with a powerful 15 HP motor and a 6-row helical cutter head featuring 174 carbide inserts.
Designed for efficiency, the motorized table elevation allows quick adjustments via an intuitive digital control system. Additional features such as a segmented chip breaker, a 3-speed feed rate, and a 5-inch dust port ensure clean and accurate results for every project.
- Specifications and Dimensions
- Main motor: 15 HP, 220V/440V* (prewired for 220V), 3-phase, 37A/18.5A
- Table elevation motor: 1/2 HP, 3-phase, 2A/1A
- Minimum circuit size: 50A @ 220V, 30A @ 440V
- Maximum stock width: 25″
- Maximum stock thickness: 9″
- Minimum stock thickness: 1/4″
- Minimum stock length: 10″
- Maximum cutting depth: 1/8″
- Cutterhead diameter: 3-1/2″
- Cutterhead type: 6-row helical with 174 inserts
- Insert size and type: 15 x 15 x 2.5mm, indexable carbide
- Feed rate: 20, 25, 30 FPM
- Table size with extensions: 25-1/8″ W x 69-5/8″ L
- Table movement: 9″
- Overall dimensions: 54-1/2″ W x 57″ D x 54-1/2″ H
- Approximate shipping weight: 2057 lbs.
- Key Features and Benefits
- 6-row helical cutter head with 174 carbide inserts for smooth cuts
- Motorized table elevation with digital controls for precision adjustments
- Segmented chip breaker and micro-adjustable table height for accuracy
- 3-speed feed rates (20, 25, 30 FPM) for versatile applications
