Description

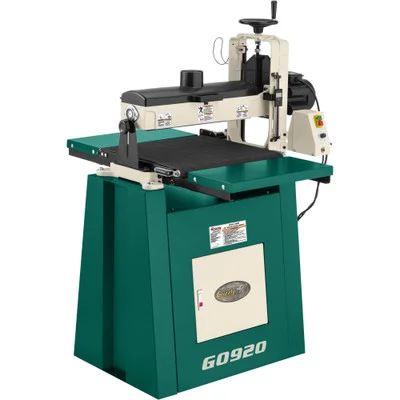

Grizzly Industrial 22″ Variable-Speed Open-Ended Drum Sander (G0920) delivers unmatched versatility and power for sanding wide panels and live edge slabs. With a 2 HP motor and open-ended design, it easily handles workpieces up to 42-1/2″ wide by sanding one half at a time.
The variable-speed conveyor adjusts between 0–10 FPM, ensuring precision for different materials. Additional features like a digital depth gauge and spring-tensioned sandpaper fasteners make this drum sander efficient and user-friendly for professional results.
- Specifications and Dimensions
- Drum motor: 2 HP, 230V, single-phase, 7.5A
- Feed motor: 50W, 1A
- Maximum stock thickness: 5″
- Minimum stock thickness: 1/4″
- Maximum sanding width: 42-1/2″
- Minimum sanding width: 2″
- Minimum board length: 9″
- Sandpaper size: 3″ x 127″, plain-backed
- Sandpaper speed: 2300 FPM
- Conveyor feed rate: Variable, 0–10 FPM
- Drum size: 5″
- Dust port size: 4″
- Footprint: 23-1/2″ x 32-1/2″
- Overall dimensions: 42-1/2″ W x 43-1/2″ D x 61″ H
- Approximate shipping weight: 341 lbs.
- Key Features and Benefits
- Open-ended design for sanding workpieces up to 42-1/2″ wide
- Variable-speed conveyor for material flexibility
- Digital depth gauge for precise thickness adjustments
- Spring-loaded sandpaper tension for quick belt changes
- Industrial-duty rubber conveyor belt for stability
- 4″ dust port with integrated hose hook
