Description

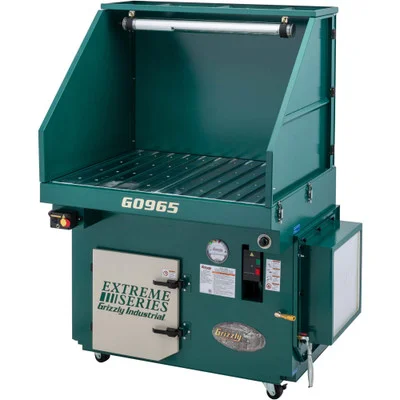

Grizzly Industrial 2 HP HEPA Metalworking Downdraft Table (G0965) is designed to capture harmful metal particles from grinding, sanding, welding, and cutting processes. With a durable grated table and 5/8″ holes, it provides flexibility for attaching jigs and fixtures, making it perfect for welding and fabrication tasks.
Featuring a multi-stage filtration system, this downdraft table includes a spark arrestor, two flame-resistant canister filters, and a HEPA filter to capture particles as small as 0.3 microns with 99.99% efficiency. The steel body and locking casters make it both durable and portable, while the integrated work light, dust drawer, and pneumatic cleaning system enhance usability.
- Specifications and Dimensions
- Motor: 2 HP, 230V/460V (prewired 230V), 3-phase, 6.6A/3.3A
- Air suction capacity: 1350 CFM
- Inlet hole area: 1.6 sq. ft.
- Outlet size: 20″ x 18″
- Number of filters: 4
- First-stage filter size: 630 x 285 x 22mm
- Second-stage filter rating: 0.2–2 Microns @ 95% (x2)
- Third-stage filter: HEPA filter 0.3 Microns @ 99.99%
- Table size: 44″ W x 35-5/8″ D
- Floor to table height: 40-1/2″
- Table load capacity: 1543 lbs.
- Overall dimensions: 56″ W x 39″ D x 74″ H
- Approximate shipping weight: 1019 lbs.
- Key Features and Benefits
- HEPA filtration captures particles as small as 0.3 microns
- 2 HP motor provides 1350 CFM airflow for efficient particle removal
- Grated table with 5/8″ holes supports jigs and fixtures
- Integrated fluorescent work light for enhanced visibility
