Description

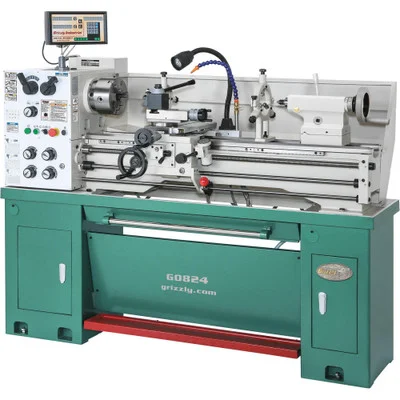

Grizzly Industrial 14″ x 40″ 2-1/2 HP Gunsmith Lathe w/ DRO (G0824) is engineered to handle demanding gunsmithing and machining tasks. With a powerful 2-1/2 HP motor and 8-speed gearhead, this lathe offers spindle speeds ranging from 70 to 2000 RPM, making it versatile for various applications.
This lathe includes advanced features like a “spider” mount system for enhanced barrel support, precision X- and Z-axis DRO, and high-precision bearings for exceptional accuracy. Additional highlights include a built-in coolant system, quick-change tool post, LED work light, and safety foot brake.
- Specifications and Dimensions
- Main motor: 2-1/2 HP, 220V, single-phase, 10A
- Coolant pump motor: 40W, 0.45A
- Swing over bed: 14″
- Swing over cross slide: 8-13/16″
- Distance between centers: 40″
- Spindle nose: D1-5 camlock
- Spindle bore: 2.01″ (51mm)
- Spindle taper: MT#6
- Spindle speeds: 8, 70–2000 RPM
- Tailstock barrel taper: MT#3
- Tailstock barrel travel: 3-15/16″
- Cross slide travel: 6-11/16″
- Compound travel: 3-7/8″
- Range of threads (inches): 34 @ 4–56 TPI
- Range of threads (metric): 26 @ 0.4–7mm
- Width of bed: 7-3/8″
- Approximate shipping weight: 1550 lbs.
- Key Features and Benefits
- 8-speed gearhead with spindle speeds from 70–2000 RPM
- High-precision X- and Z-axis DRO for accurate machining
- Quick-change tool post and versatile D1-5 camlock spindle
- Steady and follow rests with roller bearing supports
