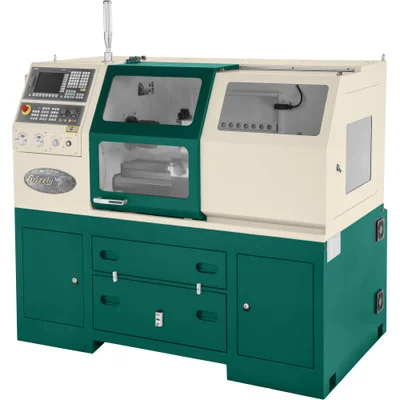

Grizzly Industrial 13″ CNC Lathe with Auto Tool Changer (G0884) takes precision and efficiency to the next level. With a powerful 4 HP motor and a variable-speed spindle ranging from 30–4000 RPM, this CNC lathe is ideal for mass production, delivering perfect duplication every time.
This lathe is equipped with a Siemens® Sinumerk CNC controller for enhanced programmability and servo motors with ball screws on all axes for precise movements. The enclosed work center design promotes a clean work environment while optimizing coolant flow from the 14-gallon tank.
- Specifications and Dimensions
- Main motor: 4 HP, 220V, 3-phase, 6.4A
- Swing over bed: 13″
- Swing over tool rest: 6″
- Distance between centers: 27″
- Maximum tool bit size: 5/8″
- Spindle speed: Variable, 30–4000 RPM
- Spindle: A2-4
- Tailstock barrel taper: MT3
- Tailstock barrel travel: 4-1/2″
- Carriage travel: 23-1/2″
- Cross slide travel: 6-1/4″
- X-axis rapid speed: 235 in./min.
- Z-axis rapid speed: 315 in./min.
- Coolant capacity: 8 gallons
- Overall dimensions: 75″ W x 47″ D x 83″ H
- Approximate shipping weight: 3100 lbs.
- Key Features and Benefits
- 6-position automatic tool changer for efficient tool switching
- Siemens® Sinumerk CNC controller for easy programmability
- Variable-speed A2-4 precision spindle up to 4000 RPM
- Powerful 4 HP motor supports heavy-duty turning applications
- High-capacity 14-gallon coolant tank with flex nozzle
