Description

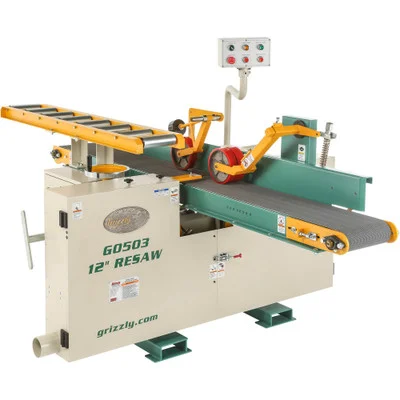

Grizzly Industrial 12″ 20 HP Horizontal Resaw Bandsaw (G0503) delivers exceptional performance and reliability for woodworking projects requiring precision resawing. Featuring a powerful 20 HP motor and adjustable blade guides, this machine provides consistent results on materials up to 12″ thick.
Designed for professional use, the hydraulic feed system ensures smooth and efficient operation, while the robust steel frame enhances stability. This resaw bandsaw is perfect for large-scale woodworking, offering variable feed speeds and precise manual blade tension adjustment to handle demanding applications.
- Specifications and Dimensions
- Main motor: 20 HP, 220V/440V (prewired 220V), 3-phase, 48A/24A
- Hydraulic tank motor: 2 HP, 6A/3A
- Minimum circuit size: 60A @ 220V, 40A @ 440V
- Hydraulic pressure: 775 PSI
- Maximum cutting capacity: 12″ x 12″
- Distance from blade-to-conveyor table: 1/4″–5″
- Saw wheel size: 28″ x 7/8″
- Saw blade size: 168″ x 1″
- Saw blade speed: 7300 FPM
- Conveyor belt size: 11-1/4″ x 215-3/4″
- Variable feed speed: 32–82 FPM
- Conveyor table: 12″ wide x 102″ long
- Floor to table height: 35-1/2″
- Overall size: 108″ W x 81″ D x 65-1/2″ H
- Approximate shipping weight: 2778 lbs
- Key Features and Benefits
- 20 HP motor for high-performance resawing
- Hydraulic feed system for smooth operation
- Adjustable blade guides for precision cutting
- Variable feed speeds from 32 to 82 FPM
- Robust steel frame and conveyor table for stability
- Manual blade tension adjustment for versatility
- Two 4″ dust ports for efficient debris collection
- 8″ cast-iron pressure rollers with polyurethane tires
