Description

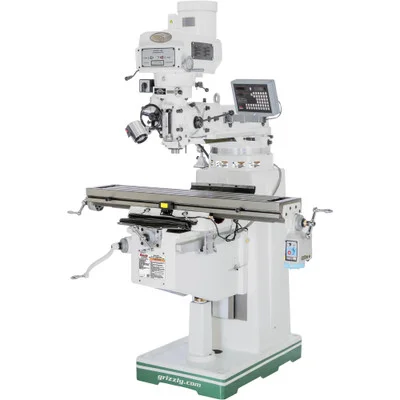

Grizzly Industrial 10″ x 50″ 3 HP Variable-Speed Vertical Mill with Power Feed and DRO (G0797) combines industrial-grade performance with precision, making it ideal for a wide range of milling applications. The 10″ x 50″ table offers ample space, while the built-in longitudinal power feed enhances efficiency during operation.
Engineered with Meehanite® castings and a 2-axis DRO, this mill ensures smooth and reliable performance. The head rotates 90° left/right and tilts 45° forward/back, offering flexibility for complex tasks. This mill is designed for long-lasting reliability and precision, meeting the demands of industrial and professional workshops.
- Specifications and Dimensions
- Required power supply: 220V/440V, 3-phase, min. 15A circuit
- Motor: 3HP, 220V/440V (prewired for 220V), three-phase, 6.4A/3.2A
- Spindle taper: R-8
- Spindle speed: Variable, 60–4200 RPM
- Spindle travel: 5″
- Maximum distance spindle to table: 19-1/4″
- Table travel (longitudinal): 30″
- Table travel (across): 14″
- Table travel (vertical): 15″
- Table size: 10″ x 50″
- T-slots: 3 @ 2-1/2″ centers, 5/8″ wide
- Head ram travel: 18-1/2″ F/B
- Head tilt: 90° L/R, 45° F/B
- Turret/column swivel: 360°
- Drilling capacity for steel: 1-1/4″
- End milling capacity: 1″
- Face milling capacity: 3″
- Footprint: 48″ x 33″
- Overall shipping dimensions: 100″ W x 85″ D x 88″ H
- Approximate shipping weight: 3021 lbs.
- Key Features and Benefits
- Variable-speed spindle for precise milling control
- 2-axis DRO for accurate table positioning
- Durable Meehanite® castings for stability and reliability
- Built-in longitudinal power feed for efficient operations
- Chrome-plated, precision-ground quill
