Description

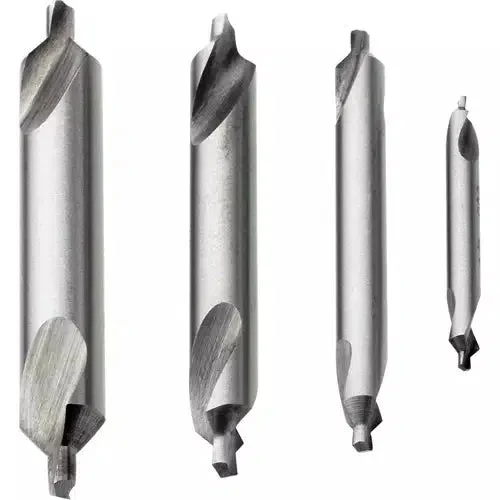

H5931 4-Piece 82° Center Drill Set

The H5931 Center drills consist of a pilot drill on one side and a countersink on the other.

These center drills are used to cut holes in the center of a piece of stock on a metalworking lathe.

They all have a live center angle of 82° which is common for use with flat head screws.

The double ended H5930 HSS Center Drills are precision ground and includes sizes 1-4.

HSS (high-speed steel) has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The Grizzly Customer Service and Technical Support Teams are U.S.-based.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Material: High-speed steel
• Angle: 82°
• Size 1: Body Dia. 1/8″, Drill Dia. 3/64″, O.A. Length 1-1/4″
• Size 2: Body Dia. 3/16″, Drill Dia. 5/64″, O.A. Length 1-7/8″
• Size 3: Body Dia. 1/4″, Drill Dia. 7/64″, O.A. Length 2″
• Size 4: Body Dia. 5/16″, Drill Dia. 1/8″, O.A. Length 2-1/8″
