Description

*ON BACKORDER – JANUARY 2025*

Turn, mill, and drill precise little parts.

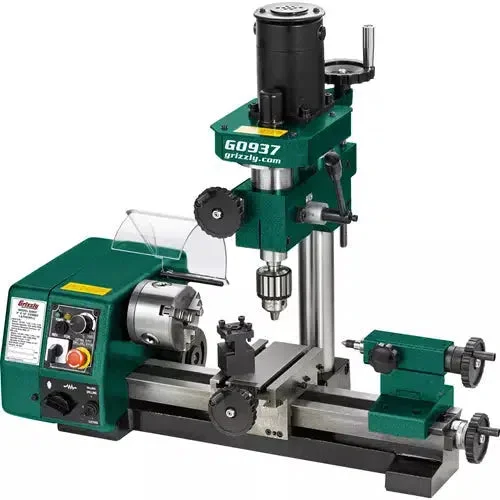

The stout and multi-purpose G0937 Combo Lathe/Mill is a small, yet robust lathe and mill combination that is great for creating small projects.

The lathe cuts inch threads and comes with a 3″ three-jaw scroll chuck.

The compound rest features a 2-way turret tool post and the cross slide conveniently acts as a mill table with two 5/16″ T-slots for work-holding.

Accurate and repeatable, the mill has an adjustable head, a fine down feed clutch, comes with a JT2 drill chuck taper, and an MT2 spindle taper.

The G0937 manual was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your combination lathe mill.

Made in an ISO 9001 factory

LATHE SPECIFICATIONS:

• Swing over bed: 6″
• Swing over cross slide: 3″
• Distance between centers: 10″
• Spindle speed: Variable, 100–2000
• Spindle bore: 11/32″
• Spindle taper: MT#2
• Tailstock taper: MT1
• Tailstock quill travel: 1″
• Carriage travel: 7″
• Cross slide travel: 2-7/8″
• Inch thread range: 5, 16–24 TPI

MILL SPECIFICATIONS:

• Swing: 4″
• Distance from spindle to table: 4-1/2″
• Spindle speed: Variable, 100–1300
• Spindle taper: MT#2
• Spindle travel: 1-1/8″
• Drill chuck taper: JT#2
• T-slots: two 5/16″, 1-3/4″ on center
• Table dimensions: 3-1/2″ x 5-1/2″
• Maximum tool bit size: 3/8″
• Drilling Capacity: 3/8″ (steel)

MAIN SPECIFICATIONS:

• Lathe Motor: 1/5 HP, 110V, single-phase 1.8A
• Mill Motor: 1/5 HP, 110V, single-phase 1.8A
• Footprint: 12″ x 10″
• Dimensions: 24-1/2″ W x 21″ D x 22-1/2″ H
• Approximate shipping weight: 106 lbs.

FEATURES:

• Dual cross slide mill table
• Dual universal motors
• Variable-speed spindles
• Precision-ground cast-iron bed
• Push/pull fine-feed clutch with handwheel
• Cuts inch threads

INCLUDES:

• 3″ Three-jaw scroll chuck
• 2-Way turret tool post
• 1/2″ Drill chuck with arbor
• MT1 dead center
• Set of change gears
• Service tools
• 1-year limited warranty
