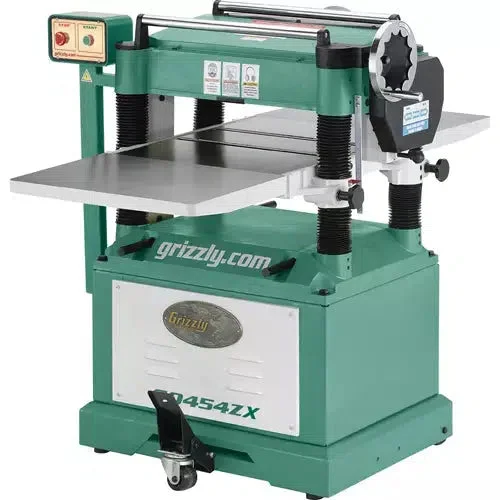

G0454ZX 20″ Planer with Spiral Cutterhead

Experience precision with the G0454ZX 20″ Planer, featuring a powerful 5 HP motor and a high-performance spiral cutterhead for impeccable results.

Cutting-Edge Spiral Cutterhead: This planer boasts a 4-row spiral cutterhead equipped with 98 indexable carbide inserts, ensuring a smooth and flawless surface finish on your workpieces.

Insert Rotation for Longevity: Each insert can be rotated up to three times, providing a fresh, sharp edge for consistently superior results over time.

High-Powered Performance: The 5 HP motor drives the cutterhead at 4902 RPM, allowing you to plane stock up to 20″ wide and 8″ thick with a depth of up to 1/16″ per pass.

Exceptional Power Transmission: The triple V-belt drive delivers robust power transmission, stability, and the extra torque required for handling tough materials.

Effortless Operation: Achieve smooth and clean planer passes with the two-speed automatic board feed, adjustable bed rollers, and bed return rollers.

Mobility Meets Convenience: Equipped with a built-in mobile base, you can easily relocate this planer within your workshop as needed.

Additional Features: The G0454ZX planer also includes a cast-iron handwheel for depth adjustment, inch and metric measuring scales, and solid cast-iron extension wings.

When the time comes, the H7319 are the 14mm x 14mm x 2.0mm replacement inserts needed.

The G0454ZX manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

CSA certified

SPECIFICATIONS:

• Motor: 5 HP, 240V, single-phase, 22A
• Maximum stock width: 20″
• Maximum stock thickness: 8″
• Minimum stock thickness: 3/16″
• Minimum stock length: 8″
• Maximum cutting depth: 1/16″
• Cutterhead type: 4-Row spiral, 98 inserts
• Cutterhead speed: 4902 RPM
• Feed rate: 15 & 20 FPM
• Table size: 20″ x 55-1/2″
• Dust port size: 5″
• Overall dimensions: 44″ W x 56″ D x 45″ H
• Approximate shipping weight: 942 lbs.

FEATURES:

• Two-speed automatic board feed
• Two adjustable bed rollers and board return rollers
• Built-in mobile base
• Heavy-duty cast-iron handwheel depth adjustment
• Magnetic switch with thermal overload protection
• Inch and metric measuring scale
• Chip breaker, pressure bar, and anti-kickback fingers
• Four-column support with table locks
• 1-year limited warranty
