Description

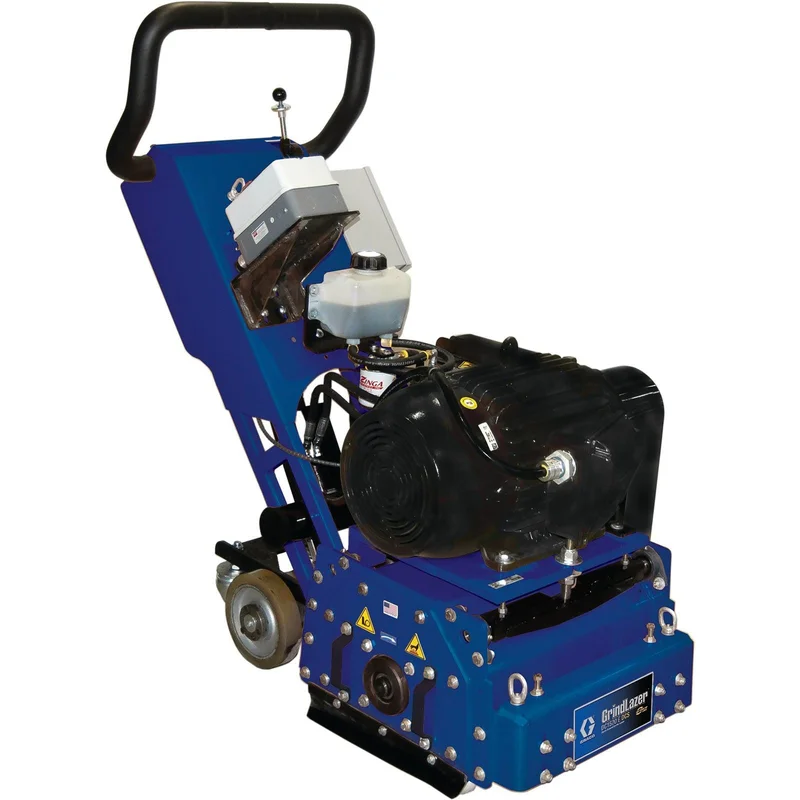

The DC1520 E DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It is capable of removing a path up to 16 inches wide and features Graco’s electronic DCS Depth Control System to quickly adjust cut depth without stopping.
All GrindLazer DC15 DCS models come with either a low or high-speed pulley kit installed. Choose a model with the high-speed pulley kit if operating with diamond or PCD cutters. Choose a model with the low-speed pulley kit if using with carbide cutters.
- Do-It-All Solution
- Adaptable for leveling, grooving, scarifying, and stripping coatings
- Up to 16 inch removal path
- Wide variety of cutters available
- High-speed pulley kit for diamond and PCD cutters
- Quick-change side plate for easier drum removal
- Depth Control System
- Eliminate Measuring & Guesswork
- Quickly and precisely adjust the cutter depth with the push of a button
- Achieve accurate cut depth for leveling, grooving, and inlay
- Eliminate damage due to “dropped drums”
- DCS Controller
- Total Operator Control
- Easy adjustment via control panel buttons
- Set “zero point” where the cutter meets the surface
- Adjust cut depth in 0.01 inch increments
- Displays “active depth” from zero point
- English and metric units
- Robust design stands up to harsh job site environments
- Electronic components are protected against dust, debris, water, and vibration
- Self-Propelled
- Variable-speed hydrostatic drive allows user to dial in the speed for each application
- Designed for the Toughest Jobs
- All-steel chassis
- Low-vibration design
- Long-life bearings
- Powered by 20 HP Motor, 380V, 50Hz, 3ph
- Dust Removal
- Dust port for connecting to LazerVac vacuum systems
UPC Product: 00755652979951 Family Code: FAMGZU Unit of Measure: EA Height: 52 IN |132.08 CM Length: 72 IN |182.88 CM Width: 48 IN |121.92 CM Volume: 104 FT3 |2.945 M3 Chargeable Weight: 1099 LBS | 498.5 KG
Technical Specifications
| Maximum Cut Width (cm) | 41 |
|---|---|
| Maximum Cut Width (in) | 16 |
| Maximum Cut Width (mm) | 406 |
| Type | Concrete Scarifier |
| Voltage (V) | 380 |
| Product Series | High Production |
| Cutter Type | Drum |
| Cutter Drum Diameter (in) | 10 |
| Maximum Cut Rate (ft2/hr) | 3500 |
| Vacuum Port | Yes |
| Model | GrindLazer |
| Series | High Production Series |
