Description
Features

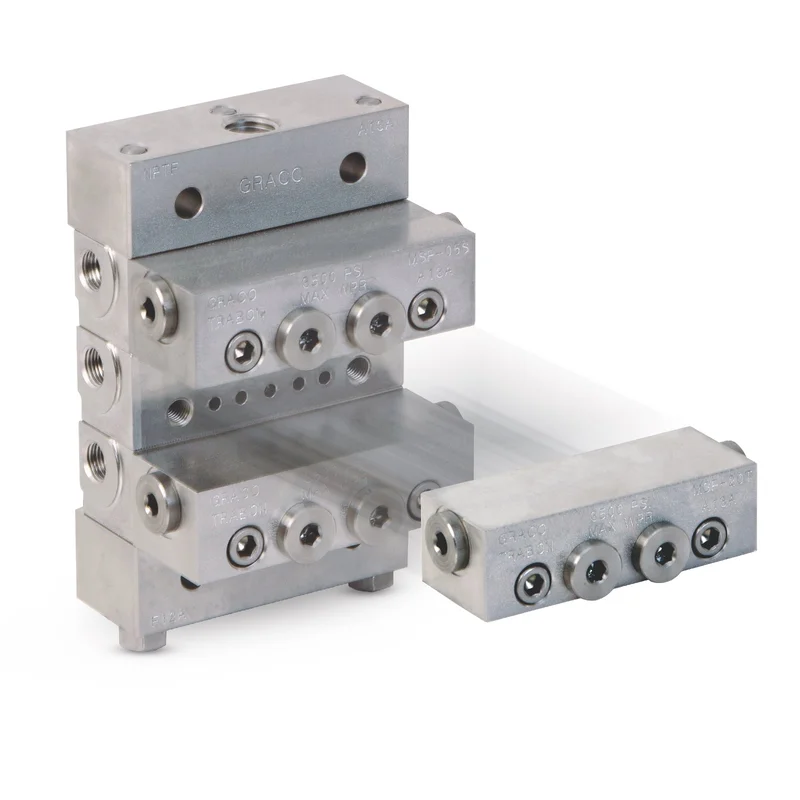

Trabon® MSP Stainless Steel Series sets the industry standard for quality, reliability and ease of use features. It was the original modular-style series progressive divider valve – and is still the best! Get the same reliable valve in stainless steel.
For machine tools, textile, glass and can machinery, and mobile equipment
- Face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Can be easily accessorised with electronic proximity switches to provide positive assurance of a successful lube event.
- Outlet checks ensure accurate lube delivery, every time.
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime.
- Manufactured in our factory for quality and reliability. Each assembly is honed and match fitted for precise lube delivery every time.
Specifications
UPC Product: 00633955184626 Family Code: FAMMPM Unit of Measure: EA Height: 1.2 IN |3.048 CM Length: 8.4 IN |21.336 CM Width: 3.6 IN |9.144 CM Volume: .001 M3 |.021 FT3 Chargeable Weight: 2.72 KG | 6 LBS
Technical Specifications
| Maximum Working Pressure (psi) | 3500 |
|---|---|
| Outlet Size (mm) | 3.175 |
| Inlet Thread Type | NPSF |
| Inlet Size (in) | 1/4 |
| Outlet Size (cm) | 0.3175 |
| Number of Outlets | 14 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Operating Temperature (°F) | 350 |
| Inlet Thread Gender | Female |
| Cycle Indicator | None |
| Outlet Thread Type | NPSF |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/8 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum NLGI Grade | #2 |
| Material | Stainless Steel |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 176 |
| Type | Divider Valve |
| Divider Valve Series | MSP |
| Application | On-Road Vehicles, Off-Road Equipment, In-Plant Machinery |
| Model | Trabon |
| Series | MSP |
| Discharge Per Piston Stroke (in³) | N/A |
