Description
Features

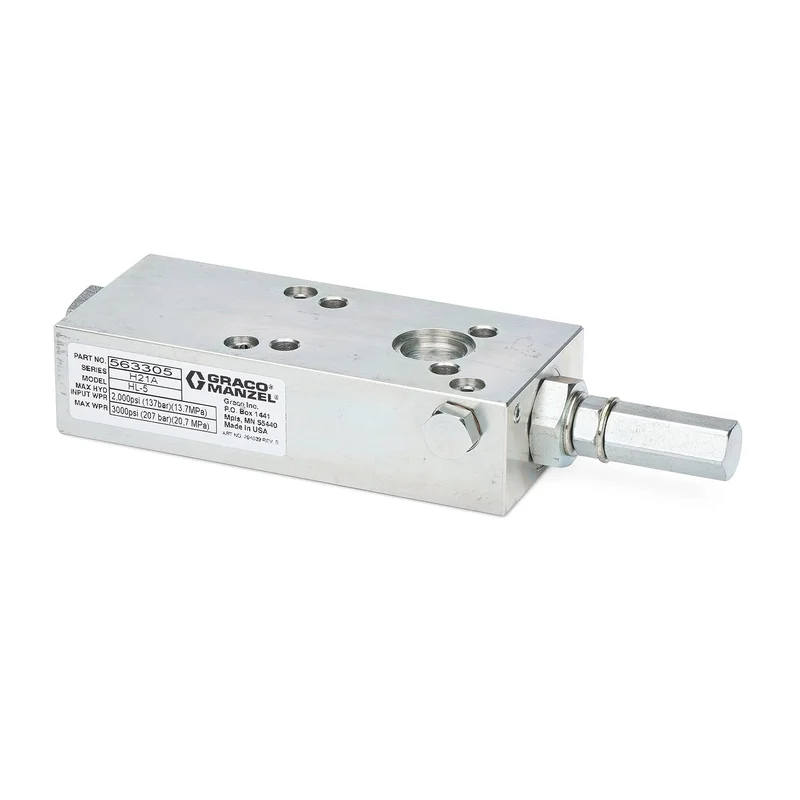

The Modu-Flo system is ideal for applications where minimizing downtime is critical. Customizing is easy–just mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
- Modular system design allows configurations to work in all applications
- Easy to standardize on components and reduce inventory
- Adjustable pump output for fast, convenient customization
- Lubriquip part number 521-000-011
Specifications
UPC Product: 633955351066 Family Code: FAMMPM Unit of Measure: EA Height: 3.1 IN |7.874 CM Length: 11.5 IN |29.21 CM Width: 3.1 IN |7.874 CM Volume: .064 FT3 |.002 M3 Chargeable Weight: 4.34 LBS | 1.97 KG
Technical Specifications
| Type | Hydraulic Piston Pump |
|---|---|
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Maximum Cycle Rate (CPM) | 60 |
| Maximum Fluid Output Pressure (psi) | 2000 |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Modu-Flo |
| Power Type | Hydraulic |
| Series | HLJ-5 |
| Compatible Metering Device | Series Progressive |
| Maximum Working Pressure (MPa) | 45.5 |
| maximum_fluid_output_pressure_bar | 138 |
