Description

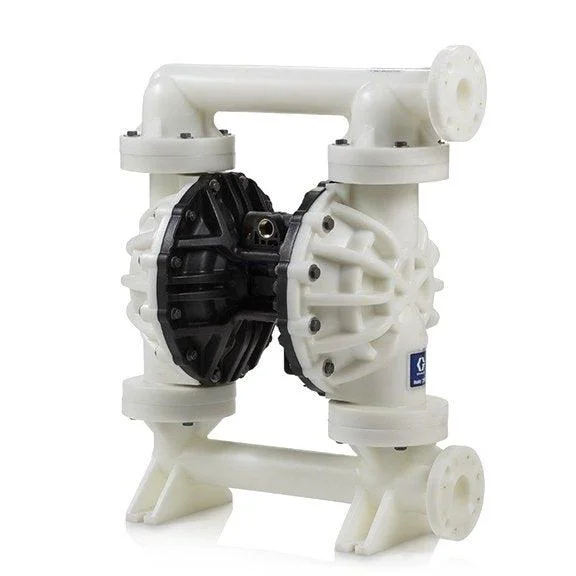

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.
Specifications
UPC Product: 00633955241534 Family Code: FAMAOD Unit of Measure: EA Height: 39.6 IN |100.584 CM Length: 20.4 IN |51.816 CM Width: 31.2 IN |79.248 CM Volume: 14.59 FT3 |.413 M3 Chargeable Weight: 151.835 LBS | 68.839 KG
Technical Specifications
| Type | Pneumatic Diaphragm Pump |
|---|---|
| Air Exhaust Port Size (in) | 1 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water – Wastewater Treatment, Water, Water – Wastewater Transfer |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (cm) | 5.08 |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50.8 |
| Fluid Outlet Size (cm) | 5.08 |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Size (mm) | 50.8 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 140 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 125 |
| Maximum Flow Rate (GPM) | 200 |
| Maximum Flow Rate (L/min) | 757 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 860 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.9525 |
| Maximum Solid Size (in) | 0.375 |
| Maximum Solid Size (mm) | 9.525 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Overall Height (in) | 30.3 |
| Power Source | Air |
| Seat Material | Polypropylene |
| Series | 2200 |
| Standards Met | CE |
| Weight (lb) | 80 |
| Wetted Material | Polypropylene, PTFE/EPDM |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Air Pressure (MPa) | 0.86 |
| Connection Type | Center Flange ANSI/DIN |
| diaphragm_compatible_material | PTFE |
