Description

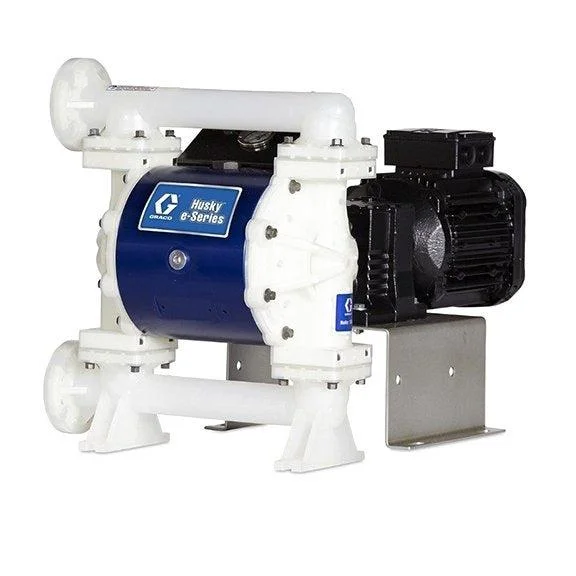

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.
Specifications
UPC Product: 00755652313793Family Code: FAMEODUnit of Measure: EAHeight: 78.74 CM |31 INLength: 20 IN |50.8 CMWidth: 33 IN |83.82 CMVolume: 11.84 FT3 |.335 M3Chargeable Weight: 163 LBS | 73.94 KG
Technical Specifications
| Type | Electric Diaphragm Pump |
|---|---|
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Aluminum |
| Compatible Material | Antifreeze, Detergent, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water – Wastewater Treatment, Water – Wastewater Transfer, Water, Waterborne, Solventborne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink |
| Diaphragm Material | PTFE/EPDM Overmold |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Pressure (bar) | 5.5 |
| Maximum Air Pressure (kPa) | 550 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 5.2 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 42 |
| Maximum Flow Rate (L/min) | 159 |
| Maximum Fluid Pressure (bar) | 4.8 |
| Maximum Fluid Pressure (kPa) | 480 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Motor Speed (RPM) | 3600 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.175 |
| Maximum Storage Temperature (°C) | 40 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Motor Type | Brushless DC |
| Power Rating (HP) | 2.2 |
| Power Source | Electric |
| Seat Material | Polypropylene |
| Series | 1050e |
| Voltage (V ac) | 320 |
| Weight (lb) | 87.5 |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Air Pressure (MPa) | 0.55 |
| Connection Type | Center Flange ANSI/DIN |
| diaphragm_compatible_material | PTFE |
