Description
Features
For use with Electric Grease Jockey System Installation Kits.

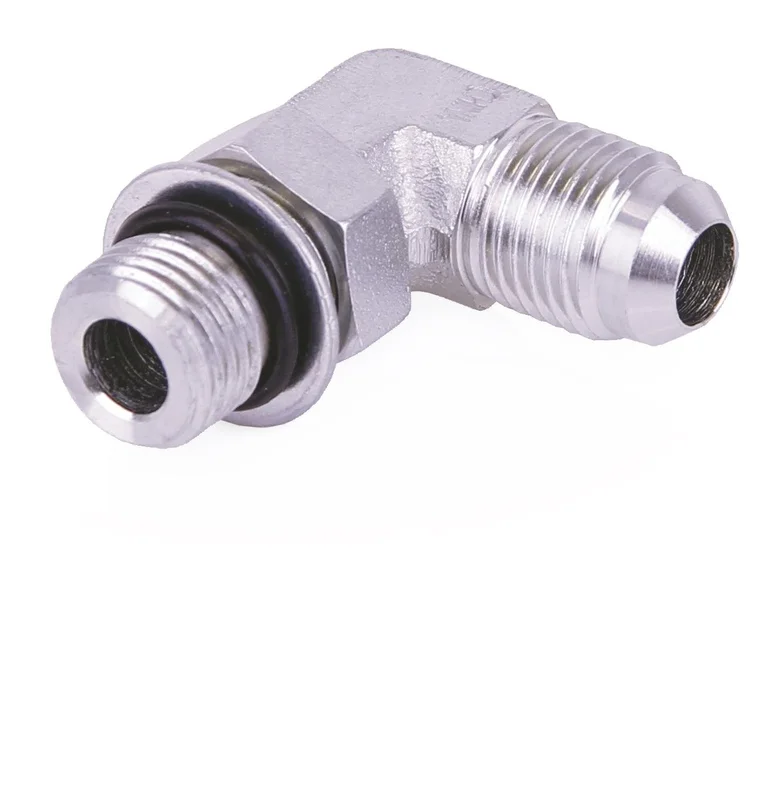

- Electric Grease Jockey Mainline 90° Elbow Fitting, 6 ORB x 9/16 37° Flare
Specifications
UPC Product: 00755652627562 Family Code: FAMCPT Unit of Measure: EA Height: .85 IN |2.159 CM Length: 1.85 IN |4.699 CM Width: 1.4 IN |3.556 CM Volume: .001 FT3 |0 M3 Chargeable Weight: .11 LBS | .05 KG
Technical Specifications
| Angle (°) | 90 |
|---|---|
| Application | On-Road Vehicles |
| Compatible Material | Oil, Grease |
| Connection Type | Threaded |
| Material | Steel |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Size A (in) | 9/16 |
| Size A (mm) | 14.288 |
| System of Measurement | Imperial |
| Thread Type | JIC, SAE |
| Type | Elbow |
| Model | Grease Jockey |
