Description
Features
Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

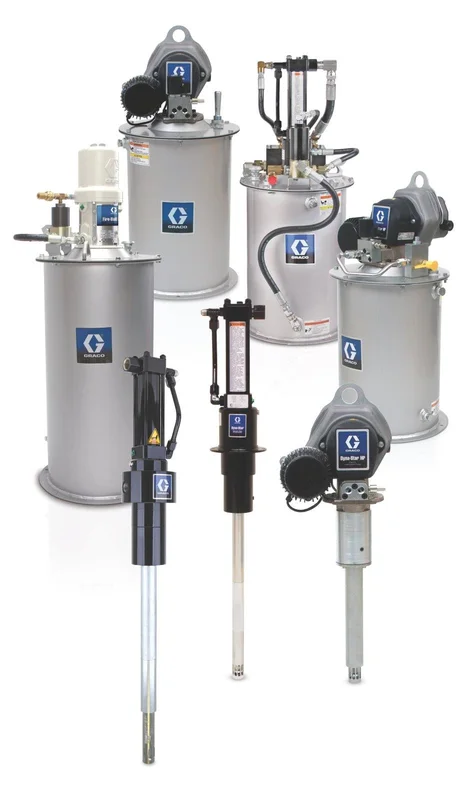

Electric pumps for heavy duty automatic lubrication and transfer systems.
- Graco Advantage Drive™ – heavy duty gear drive – lubed for life
- Motor control – speed and AMP control
- Tube-in-tube vent and fill path – convert drum to injector system instantly
- Cold weather performance (-40°C)
- More efficient seal replacement
Specifications
UPC Product: 00633955387935 Family Code: FAMHPM Unit of Measure: EA Height: 14.4 IN |36.576 CM Length: 50.4 IN |128.016 CM Width: 15.6 IN |39.624 CM Volume: 6.552 FT3 |.186 M3 Chargeable Weight: 68.204 LBS | 30.922 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil & Grease |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Type | NPT |
| Includes | HP 泵, HP ポンプ, HP Pump, Bomba de alta presión, 套管, チューブインチューブ, Tube-in-Tube, tubo en tubo, 35/60 磅储罐, 16 または 27 kg (35 または 60 ポンド) リザーバー, 35 or 60 lb (16 or 27 kg) Reservoir, depósito de 16 o 27 kg |
| Maximum Working Pressure (bar) | 344 |
| Maximum Working Pressure (kPa) | 34400 |
| Maximum Working Pressure (psi) | 5000 |
| Model | Dyna-Star |
| Power Type | Electric |
| Reservoir Size (lb) | 35, 60 |
| Voltage (V dc) | 24 |
| Weight (lb) | 50 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Compatible Metering Device | Single Line Parallel |
| IP Rating | IP69K |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Overall Height (cm) | 73.7 |
| Overall Height (in) | 29 |
| Overall Height (mm) | 737 |
| Overall Width (cm) | 27.9 |
| Overall Width (in) | 11 |
| Overall Width (mm) | 279 |
| Power Connection Type | M23 |
| Weight (kg) | 22.68 |
| Maximum Working Pressure (MPa) | 34.4 |
