Description
Features

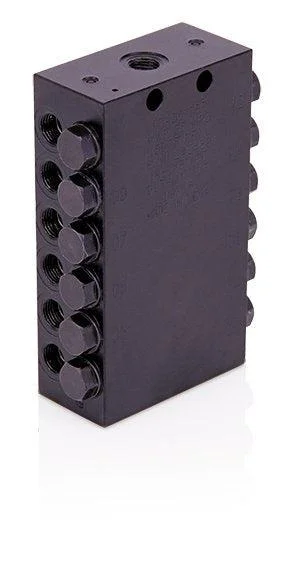

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
- 1/8 inch NPT inlet
- Space efficient design with 12 outlets, without indicator
- Outlets can be combined to meet larger bearing needs
- Built-in durability with Zinc Iron plating to stand up to harsh environments
- High output pressure – maximum working pressure of 350 bar (5076 psi) for both oil and grease
Specifications
UPC Product: 00755652413394 Family Code: FAMMPM Unit of Measure: EA Height: 1.63 IN |4.14 CM Length: 14.3 CM |5.63 IN Width: 4.25 IN |10.795 CM Volume: .023 FT3 |.001 M3 Chargeable Weight: 1.36 KG | 3 LBS
Technical Specifications
| Minimum Working Pressure (bar) | 15 |
|---|---|
| Maximum Working Pressure (psi) | 5076 |
| Minimum Working Pressure (psi) | 217.5 |
| Inlet Thread Type | NPT |
| Inlet Size (in) | 1/8 |
| Number of Outlets | 12 |
| Minimum Output Volume (cm³) | 0.2 |
| Maximum Working Pressure (bar) | 350 |
| Maximum Operating Temperature (°F) | 212 |
| Cycle Indicator | None |
| Outlet Thread Type | NPT |
| Outlet Thread Gender | Female |
| Minimum Working Pressure (kPa) | 1500 |
| Maximum Working Pressure (kPa) | 35000 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Inlet Size (mm) | 3.175 |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 100 |
| Inlet Size (cm) | 0.3175 |
| Type | Divider Valve |
| Divider Valve Series | CSP |
| Application | On-Road Vehicles, Off-Road Equipment |
| Model | Trabon |
| Series | CSP |
| Discharge Per Piston Stroke (in³) | N/A |
