Description
Features

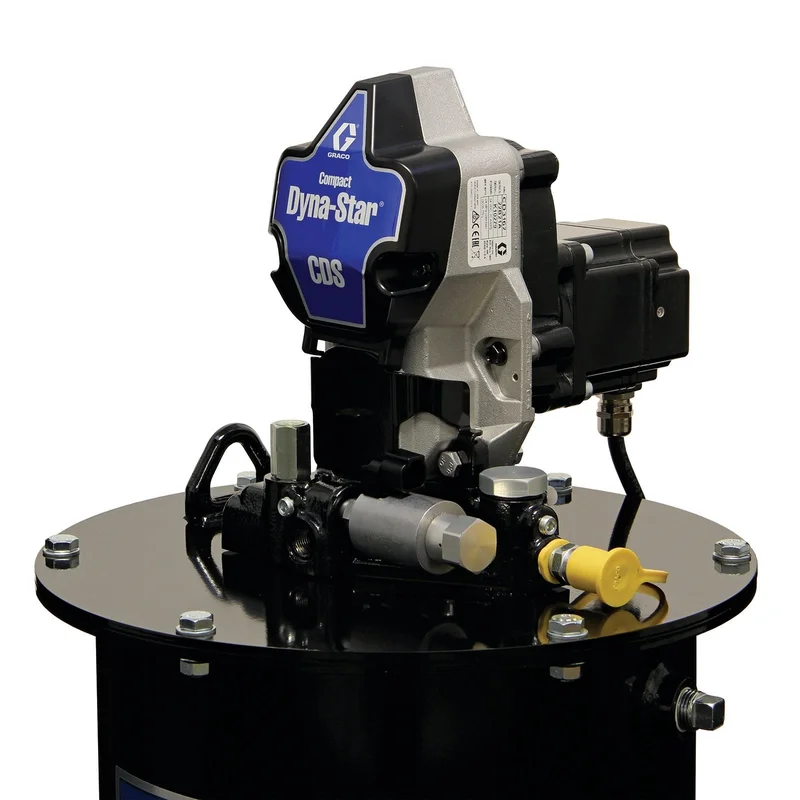

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
- Compact Power – Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval.
- Smart Power Train – 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
- Rugged Durability – Metal construction ensures trustworthy operation in the most extreme environments.
- Intelligent Monitoring – Optional pressure and lubricant level sensors provide useful system information, in real time.
Specifications
UPC Product: 769946179323 Family Code: FAMHPM Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 FT3 |0 M3 Chargeable Weight: 0 LBS | 0 KG
Technical Specifications
| Type | Compact Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil & Grease |
| Fluid Outlet Size (in) | 3/8, 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Input Voltage (V dc) | 24 |
| Maximum Continuous Cycle Rate (CPM) | 64 |
| Maximum Cycle Rate (CPM) | 64 |
| Maximum Flow Rate (L/min) | 0.074 |
| Maximum Fluid Output Pressure (psi) | 3500 |
| Maximum Intermittent Cycle Rate (CPM) | 64 |
| Maximum NLGI Grade | 2 |
| Maximum Operating Temperature (°C) | 149 |
| Maximum Operating Temperature (°F) | 65 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Motor Type | Brushless DC |
| Power Rating (HP) | 0.25 |
| Power Type | Electric |
| Reservoir Material | Steel |
| Reservoir Size (L) | 30 |
| Reservoir Size (lb) | 60 |
| Seal Material | Buna-N |
| Sound Pressure Level (dB(A)) | 70 |
| Throat Seal Type | Hythane 181, Hythane 181, Hythane 181, Hythane 181, Hythan 181 |
| Weight (lb) | 83 |
| Wetted Material | Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene |
| Compatible Metering Device | Single Line Parallel |
| Component Technology | Brushless Electric Motor;Shovel-loading pump tube |
| IP Rating | IP69K |
| Low Level Carry Current (A) | 0.02 |
| Maximum cST Grade (cST) | NLGI #2 |
| Maximum Cycle Rate (strokes/min) | 64 |
| Maximum Fill Inlet Pressure (psi) | 500 |
| Maximum Flow Rate (ci/min) | 4.5 |
| Maximum Voltage (V dc) | 30 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | 1 |
| Overall Depth (cm) | 39.62 |
| Overall Depth (in) | 15.6 |
| Overall Depth (mm) | 396.2 |
| Overall Height (cm) | 72.14 |
| Overall Height (in) | 28.4 |
| Overall Height (mm) | 721.4 |
| Overall Width (cm) | 38.1 |
| Overall Width (in) | 15 |
| Overall Width (mm) | 381 |
| Power Connection Type | Deutsch DT04-12PB Housing |
| Vent Valve Maximum Operating Current (A) | 1 |
| Vent Valve Maximum Operating Power (W) | 25 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage (V) | 24 |
| Weight (kg) | 37.6 |
| Number of Outlets | 2 |
| Maximum Working Pressure (MPa) | 24.1 |
| Voltage | 24 |
| Approvals | CE;EAC;RCM |
| Output Per Cycle (cm³) | 1 |
| Lower Type | Integrated Shovel Loading |
| Level Reporting Sensor Maximum Signal (VDC) | 10 |
| Level Reporting Sensor Minimum Signal (VDC) | 0 |
| maximum_fluid_output_pressure_bar | 241 |
